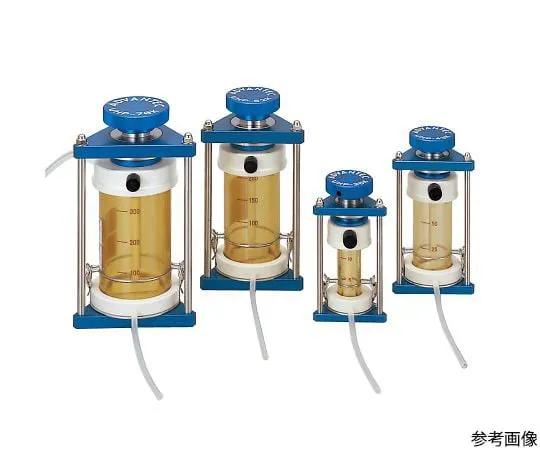

64-1187-17 Stirring Type Ultra Holder UHP-25K 31351000
Analyzer, Testing Equipment

64-1187-17 Stirring Type Ultra Holder UHP-25K 31351000

model: 64-1187-17
brand: ADVANTEC

Product Description

Product Model: 64-1187-17Product Brand: ADVANTEC Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 64-1187-17
Product Brand: ADVANTEC

Features

  • It is designed for efficient operation such as concentration by ultrafiltration, desalination and cyclic dialysis.
  • The wetted part ***s polysulfone resin, which does not ca*** adverse biochemical effects on the sample and can be sterilized by autoclaving.
  • The support of the filter is formed by digging a groove directly into the base plate, and it is easy to clean and the amount of remaining liquid is extremely small.
  • Since the agitator and the support for preventing concentration polarization are integrally molded, low-speed rotation is smooth, and the rotating sliding part can be easily removed, so cleaning after *** is easy.
  • The pressure resistant seal of the entire holder is a structure that can be locked with a single knob. *Pressure Resistant Tube Set, Pressure Resistant Hose Set A, Tube Connector, Effluent Hose Adapter and Effluent Silicone Tube cannot be sterilized by autoclave. *It is not for artificial dialysis.

Spec

  • Filter Dimensions (φ mm): 25
  • Cell capacity (mL): 10
  • Minimum concentration (mL): 0.5
  • Residual liquid volume (mL): 0.1
  • Effective filtration area (cm2): 3.5
  • Available in rotation speed: 0 rpm to 100 rpm
  • maximum working pressure ( Mpa ) : 0.49
  • Safety valve set pressure (Mpa): 0.39 ± 0.09
  • material: Cell Top Cap, Baseplate, Stirring Set/Polysulfone, O-Ring/Silicone, Others/SUS304 Aluminum, Polyacetal, FPM
  • Liquid Exit Hose Adapter Diameter (φ mm): 4.3
  • Dimensions ( mm ) : overall height/140 , full width/97
  • Weight ( kg ) : 0.8
