Analyzer, Testing Equipment

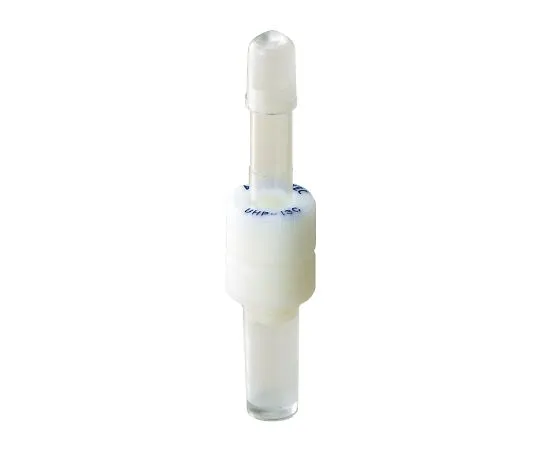

64-1187-16 Centrifugal Ultra Holder UHP-13C 31350000
Product Description
Product Model: 64-1187-16Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1187-16
Product Brand: ADVANTEC
Features
- Using your own centrifuge, you can easily perform ultrafiltration of a small sample (about 0.2 mL to 1.5 mL).
- An ultrafilter of the desired molecular weight fraction is placed in the holder and centrifuged at 9.8×103 m/s2 to 19.6×103 m/s2 (1,000×g to 2,000×g) for 5 to 10 minutes. After centrifugation, low-molecular-weight substances can be separated into a filtration cup and high-molecular-weight substances can be separated into a cell.
- The filtrate can be removed by removing the filtrate cup from the body, and the concentrate can be collected in the cell cap by turning it upside down. *Autoclave sterilization is not possible.
Spec
- Filter Dimensions: φ 13 mm
- Effective filtration area: 0.65 cm2
- Maximum sample volume: 2.0 mL
- Minimum sample volume: 0.15 mL
- Maximum centrifugal acceleration: 19.6 x 103 m/s 2 (2,000 x g)
- Residual liquid: 0.01 mL
- material: Filter Presser O-Ring/Silicone, Locking Nut Support Screen Base Body/Polyacetal, Cell/Acrylic, Filtrate Cup/Cell Cap/Polypropylene
- Accessories: Filtrate Cup/Cell Cap, Each 12 pieces, O-Ring 3 pieces
