Analyzer, Testing Equipment

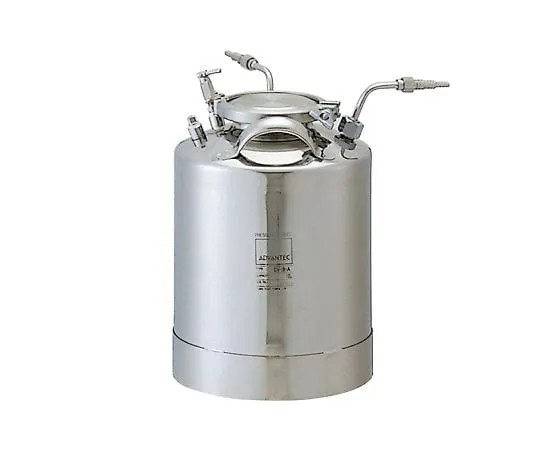

64-1186-38 Tank with Stirring Pedestal for Pressure Filtration DV-10-A 17323000
Product Description
Product Model: 64-1186-38Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1186-38
Product Brand: ADVANTEC
Features
- It is connected to the filter holder for pressurized filtration and ***d for batch filtration.
- It is a tank for mixing and melting without temperature control.
- It is equipped with a stirring pedestal so that an agitator can be attached.
Spec
- Tank capacity (L): 10
- Size: overall height/349 mm, full width/325 mm
- Opening (φ mm): 94
- maximum working pressure ( MPa ) : 0.49
- Safety valve set pressure (MPa): 0.44 ± 0.04
- Stirrer Mounting Base Diameter: 4S Ferrule
- IN, OUT Shape: Hose Adapter outer diameter: 7 mm x 10.5 mm x 13 mm, 1/4 "PS
- material: Body/SUS304, SUS316, brass (Chrome Plating), O-Ring Gasket/Silicone, PTFE, FPM
- Mass (kg): 6
