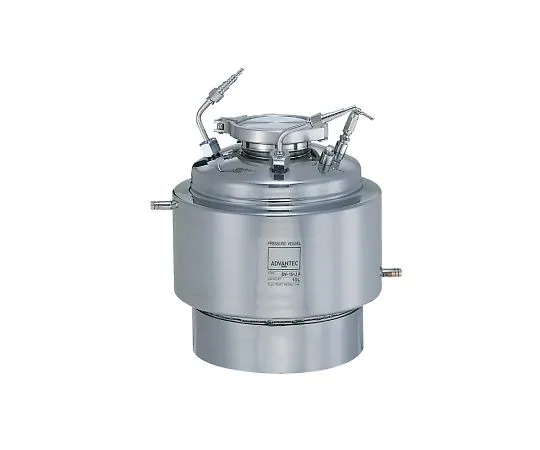

64-1186-22 Tank with Jacket Stirring Pedestal for Pressure Filtration DV-10-JA 17321170
Product Description
Product Model: 64-1186-22Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1186-22
Product Brand: ADVANTEC
Features
- Convenient temperature adjustment jackets are installed in the tank body for solutions that t*** to change due to temperature changes.
- A stirring pedestal is provided as a standard specification so that an agitator can be attached to the upper part of the tank.
Spec
- Tank capacity (L): 10
- Size: overall height/360 mm, full width/430 mm
- Opening (φ mm): 97.6
- maximum working pressure ( MPa ) : Body/0.39 , Jacket/0.19
- Safety valve set pressure (MPa): 0.34 ± 0.04
- Stirrer Mounting Base Diameter: 4S Ferrule
- IN, OUT Shape: Hose Adapter outer diameter/7 mm x 10.5 mm x 13 mm, 1/4 "PS
- Jacket IN, OUT Shape: Hose Adapter outer diameter: 16 mm, 3/8 "PT
- material: Body: SUS304/SUS316, brass (Chrome Plating), O-Ring Gasket: Silicone/PTFE/FPM
- Mass (kg): 3.8
