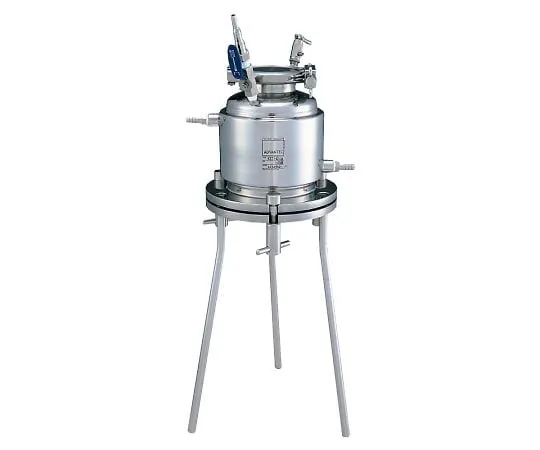

64-1185-46 Jacket/Stirring Base Tank Holder KST-142-JA 17302370
Product Description
Product Model: 64-1185-46Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1185-46
Product Brand: ADVANTEC
Features
- The tank section is equipped with a temperature control jacket that is convenient for filtering solutions that t*** to change due to temperature changes.
- The tank head is equipped with an agitation pedestal as standard so that the agitator can be attached.
Spec
- Filter Dimensions (φ mm): 142
- Pre-Filter Dimensions (φ mm): 124
- Effective filtration area (cm2): 113
- Tank capacity (L): 1.5
- maximum working pressure : Body/0.49 MPa , Jacket Part/0.19 MPa
- Maximum Working Pressure: 0.29 MPa
- Safety Valve Setting Pressure: 0.44 MPa ± 0.04 MPa
- Stirrer Mounting Base Diameter: 2.5 S Ferrule
- IN, OUT Shape: IN/Hose Adapter (outer diameter 7 mm x 10.5 mm x 13 mm) 1/4 "PT, OUT/Hose Adapter (outer diameter 11 mm) 3/4" PS
- Jacket IN, OUT Shape: Hose Adapter outer diameter: 9 mm 1/4 "PT
- With Leg
- Mass (kg): 7
