Electronic/Electrical Parts and Controll Equipments

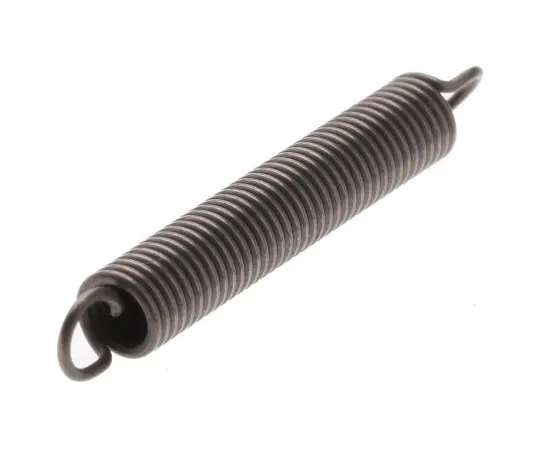

63-6724-77 RS PRO Steel Extension Spring, 31mm x 4.5mm 751-764
Product Description
Product Model: 63-6724-77Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6724-77
Product Brand: RS PRO
Features
- Material conforms to DIN17223 Class C or BS1408 CR3. Dimensions conform to DIN 2097 (grade 2). It has an oil finish.
- Piano Wire Tensile Spring
- A right-handed (clockwise) spiral spring and looped *** made of high extension strength piano wire.
- Features and Advantages: Absorbs and stores energy on both sides Resistance to tension Initial tension can be set according to individual requirements Coil spring resisting elongation Use:
- Interior and exterior garage door assembly Vise plier carburetor Trampoline cleaning equipment Agricultural machinery
Spec
- Material:Steel
- Free Length:31mm
- Maximum Ext***ed Length:53.6mm
- Outside Diameter:4.5mm
- Wire Diameter:0.63mm
- Initial Tension:18.3N
- Spring Rate:0.7N/mm
- CODE No.:751-764
