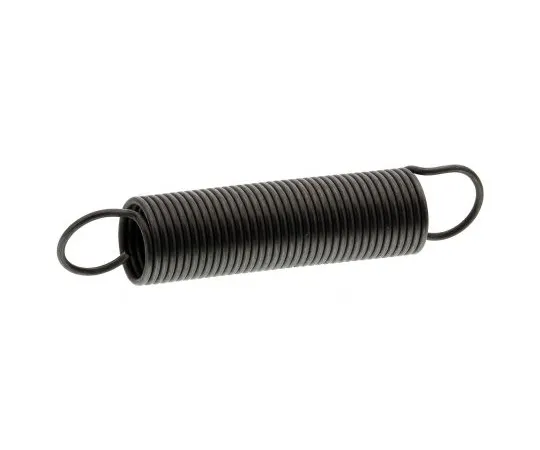

63-6724-75 RS PRO Steel Extension Spring, 27.7mm x 5.5mm 751-714
Product Description
Product Model: 63-6724-75Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6724-75
Product Brand: RS PRO
Features
- Material conforms to DIN17223 Class C or BS1408 CR3. Dimensions conform to DIN 2097 (grade 2). It has an oil finish.
- Piano Wire Tensile Spring
- A right-handed (clockwise) spiral spring and looped *** made of high extension strength piano wire.
- Features and Advantages: Absorbs and stores energy on both sides Resistance to tension Initial tension can be set according to individual requirements Coil spring resisting elongation Use:
- Interior and exterior garage door assembly Vise plier carburetor Trampoline cleaning equipment Agricultural machinery
Spec
- Material:Steel
- Free Length:27.7mm
- Maximum Ext***ed Length:80mm
- Outside Diameter:5.5mm
- Wire Diameter:0.5mm
- Initial Tension:7.80N
- Spring Rate:0.13N/mm
- CODE No.:751-714
