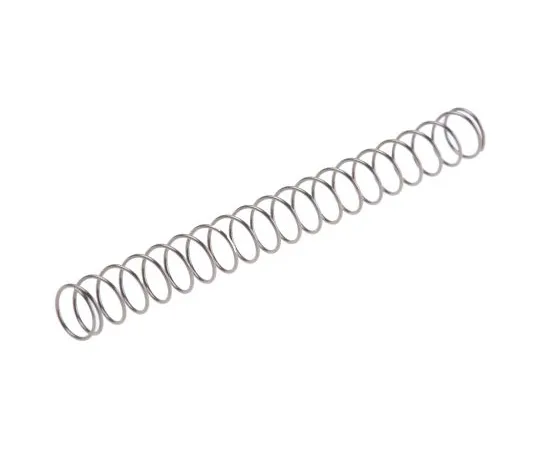

63-6724-73 RS PRO Steel Alloy Compression Spring, 53mm x 5.4mm, 0.11N/mm 751-433
Product Description
Product Model: 63-6724-73Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6724-73
Product Brand: RS PRO
Features
- The minimum effective length load is the load required to compress the spring to that length. All dimensions and tension conform to DIN 2095 (Grade 2).
- Piano Wire Compression Spring
- End diameter is up to 0.8 mm, *** face is square, grinding *** diameter is 1.00 mm, and beyond that, *** face is square, grinding right-handed spiral
Spec
- Outside Diameter:5.4mm
- Wire Diameter:0.4mm
- Free Length:53mm
- Minimum Working Length:12.8mm
- Load at Minimum Working Length:4.36N
- Material:Alloy Steel
- Spring Rate:0.11N/mm
- Ends:Closed (Square)/Unground
- CODE No.:751-433
