Features

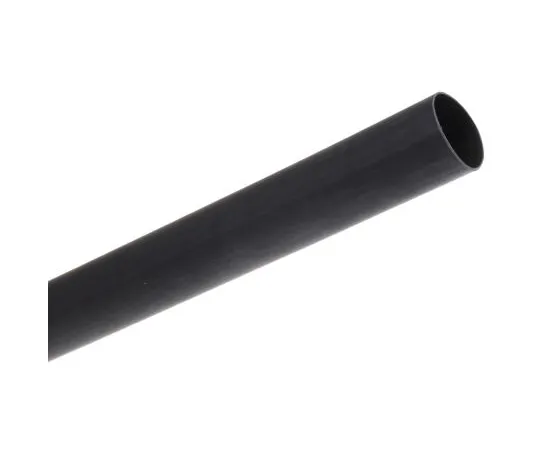

• RS PRO Adhesive Lining Halogen-Free Polyolefin Thermally Shrinkable Tube, Shrinkage Ratio 3:1
• RS PRO offers high-quality, easy-to-*** adhesive linings or dual-wall thermally shrinkable tubes made from soft, halogen-free/fully halogen-free flame-retardant dual-wall polyolefin. This heat-shrink tube shrinks to 1/3 of its original diameter at a shrinkage rate of 3:1, making it ideal for covering irregular or irregular shapes. When melted, the adhesive lining of this tube becomes a waterproof sealing and seals the wire joint. This heat shrink is halogen-free and produces less smoke and toxic gases during overheating or combustion, making it ideal for *** in safety-critical environments, especially where there is a risk of fire or overheating of electrical circuits.
• Public Transportation Railway Hospital Power Plant Airport Submarine
• What is a heat shrink tube?
• A heat shrink tube is a type of extruded plastic tube that is cut to size and placed over wire or cable joints to protect and insulate.　When heated, the tube shrinks to form a fixed protective seal. The amount of shrinkage dep***s on the heat ratio. When you buy a tube, it is stretched, and this stretched tube remembers its shape, and when it is heated, it returns to its original state.
• Features and Advantages of Adhesive Lining Soft Polyolefin Thermal Shrinkage Tubes • Thermal shrinkage rate 3:1 (tube shrinks to 1/3 of its original diameter when heated) High shrinkage rate makes installation easy Best for places susceptible to smoke Soft polyolefin tubes Full flame retardant adhesive lining Low smoke resistance, halogen free (LSZH) London Underground Specifications Clear the high standards required by E1042 A6 Operating temperature: -40 → 105 °C Thermal shrinkage temperature: 150 °C, shrinkage start temperature: 60 °C Standard black • Soft polyolefin is derived from polyethylene and is one of the most commonly ***d insulation materials. High flexibility, fast contraction and excellent durability.　When soft polyolefins are heated, the diameter shrinks radially to the original size of 1/3 beca*** the shrinkage ratio is 3:1. This heat-shrink tube has an adhesive lining inside and, when heated, melts to form a waterproof seal around the joint. This type of thermal shrinkage is also known as dual-wall thermal shrinkage.
• Highly flexible halogen-free reduces acid gas emissions and smoke generation Provides flame-retardant waterproof sealing Can be easily installed in irregular shapes and large gaps thanks to a shrinkage ratio of 3:1 Adhesive lining Operating temperature range: -40 → +105 °C Minimum shrinkage temperature: 115 °C Excellent electrical insulation properties General resistance to liquids and solvents Excellent wear resistance Tube meets London Underground specifications E1042 A6
• What is polyolefin heat shrink tube ***d for?
• This heat shrink with polyolefin adhesive lining is versatile and is ***d in both commercial and industrial applications. The halogen-free material makes it ideal for *** in places not suitable for smoking, such as public buildings, underground systems, hospitals, airports and submarines. Soluble adhesive lining allows watertight sealing and sealing of inline components such as cable joints, wire branching and blocking terminals and wire splices. This adhesive tube is also suitable for sealing electronics with irregular shapes and profiles. Main application:
• Waterproof sealing and sealing of wire joinsElectrical insulation Protecting wires and small parts against moisture, dust and chemicals Mechanical strain relief to cable and connector joints to prevent damage by b***ing and stretching Harness Tying and organizing wires, cables and tubes Cable, wiring and components with identification collars
• Use of heat-shrink tubes
• Measure the diameter of the wire or cable and select the correct size of heat-shrink tube. Cut the tube long enough to cover the heated connections or joints. Then slide it into the wire. After connecting the cables or wires, cover the joint with a heat-shrink tube and heat with a heat gun until the tube wraps tightly around the joint.
