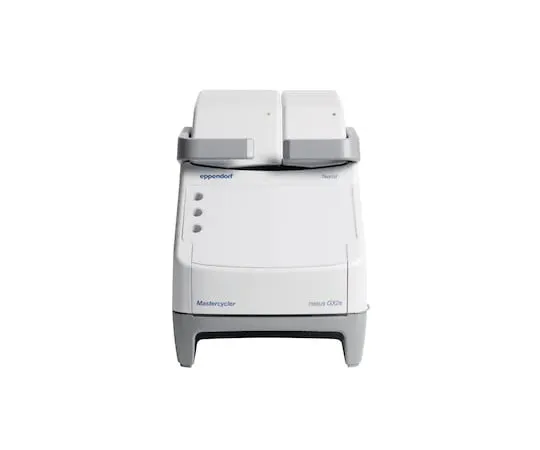

Spec

• Only method that allows unit control # 1: Yes
• Thermoblock: Aluminum
• Sample volume: 64/32 x 0.2 mL PCR tube or up to 24/10 x 0.5 mL PCR tube
• Heating Technology: Peltier Element, Triple Circuit Technology
• Temperature control mode: fast, normal, safe
• Block temperature control range: 4-99°C
• Gradient Range: 1-12°C
• Intuitive Graphic Programming: -
• Gradient Temperature Control Range: 30-99°C
• Block homogeneity 20-72°C: ≤±0.3°C
• Control accuracy: ±0.2°C
• Email Notification: Yes
• Flexible Lid ® Concept: ○
• 2 Year Warranty: Yes
• Universal block, for 0.2 mL and 0.5 mL containers: ○
• Slope Block: Yes
• The unit can control two other units in the network: -
• USB ports: -
• Block homogeneity 90°C: ≤±0.4°C
• Heating rate: 3°C/second * 2
• Cooling rate: 2°C/sec * 2
• Slope Blocks: 8 + Columns
• Lid Down Slope: flexlid® technology w/TSP
• Lid temperature range: 37-110°C
• Interface: CAN_in/CAN_out, Ethernet
• Power: 100-110 V, 50-60 Hz
• Maximum power consumption: 700 W
• Total weight: 10.5 kg
• Dimensions (W x D x H): 25 x 41.2 x 33 cm/9.8 x 16.2 x 13in
• Programs per device: >700
• Remote Device Monitoring and Notification (VisioNize®): VisioNize® boxable
• *1 Control from Mastercycler ®nexus, Mastercycler®nexus gradient, Mastercycler®nexus GSX1, Mastercycler®nexus SX1, Mastercycler®nexus GX2, Mastercycler®nexus X2 or Mastercycler®nexus flat
• *Measure in two blocks
