                                                            63-6701-39 RS PRO 50 Piece Black Domed Cap & Cup Washer Kit 1507/MM6X25 BLEU 549-117
Product Description
Product Model: 63-6701-39Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6701-39
Product Brand: RS PRO
   Features

- Types U61, U63, and U64 have low-profile caps and are int***ed primarily for *** with countersunk head screws, but can also be ***d with pan head screws. The appropriate size for a particular screw dep***s on the screw size and head type.

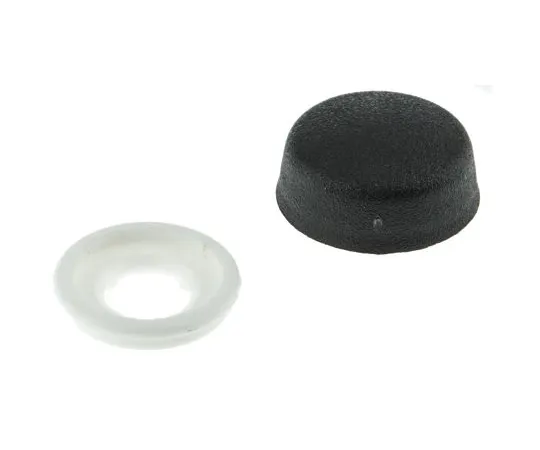

- Polypropylene Dome Cap and Cup Washer
- A polypropylene screw cap kit with a pair of dome-shaped caps and cup washers, available in three brushed colors. The cup washer is secured with screws, bolts, or rivets, and the dome cap is clipped onto the washer.
- Ideal for insulating thread heads, improving the appearance of panels and equipment cases, lightweight legs, etc. Each kit contains 25 sets of caps and washers, 4 sizes available for M2 to M5 (No
- 3 to No. 12) thread sizes Minimum size is ideal for covering RS Speedriv 3 mm rivets
- Each kit contains 25 sets of each type (caps/washers).
   Spec

- Number of Pieces:50
- Material:PP
- Finish:Plain
- Colour:Black
- Cup Hole Diameter Largest Size:5.5mm
- Cup Hole Diameter Smallest Size:3.8mm
- Cup Inside Diameter Largest Size:11.7mm
- Cup Inside Diameter Smallest Size:6.5mm
- Domed Cap Height Largest Size:6.8mm
- Domed Cap Height Smallest Size:3.7mm
- Largest Domed Cap Outside Diameter:16.3mm
- Smallest Domed Cap Outside Diameter:10mm
- CODE No.:549-117
