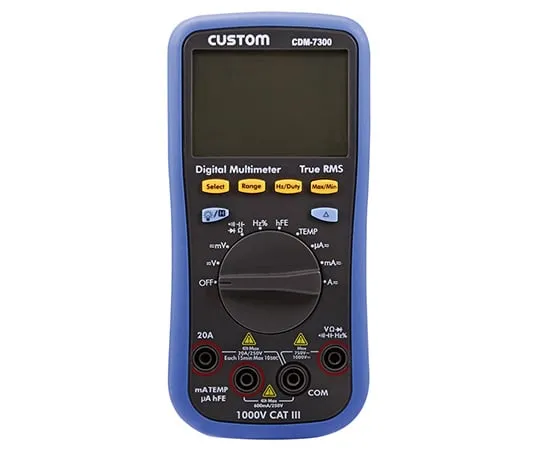

1-1107-22-24 Digital multimeter with JCSS Calibration Certificate CDM-7300
Product Description
Product Model: 1-1107-22-24Product Brand: CUSTOM corpor […]
Contact Us
Product Details
Product Model: 1-1107-22-24
Product Brand: CUSTOM corporation
Features
- A digital multimeter with voltage (DC/AC), current (DC/AC), resistance, frequency, capacitance, conduction check and diode check functions.
- Comes with duty check, data hold, relative comparison and MAX/MIN functions.
- True rms (TRUE RMS) allows rms to be displayed for waveforms other than sine waves.
- The bar graph display allows you to see changes in values as if on an analog meter.
- Temperature measurement is also possible using the attached thermocouple sensor.
Spec
- Size (mm): 88 x 37 x 186
- Weight (g): approximately 320 (including batteries)
- Power supply: 2 AA batteries (included for testing)
- measurement range
- DC Voltage: 60/600 mV, 6/60/600/1000 V
- AC Voltage: 60/600 mV, 6/60/600/750 V
- DC Current: 600/6000 μA, 60/600 mA, 6/20 A
- AC Current: 600/6000 μA, 60/600 mA, 6/20 A
- Resistance: 600 Ω, 6/60/600 kΩ, 6/60 mΩ
- Capacitance: 40/400 nF, 4/40/400/4000 μF
- Temperature: 1000 deg.
- Accessories: Test Lead, Alligator Clip, Conversion Socket, K-Type Thermocouple
