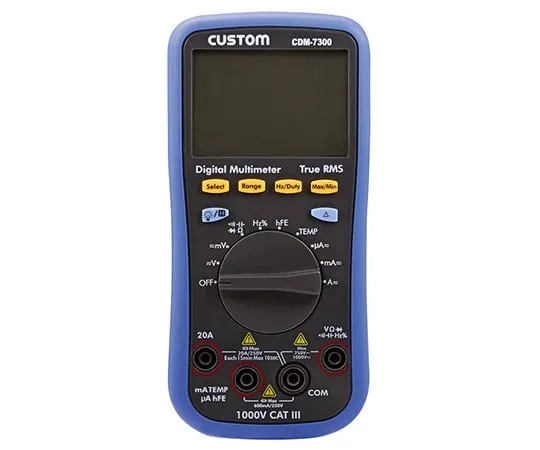

1-1107-22 Digital multimeter CDM-7300
Product Description
Product Model: 1-1107-22Product Brand: CUSTOM corporati […]
Contact Us
Product Details
Product Model: 1-1107-22
Product Brand: CUSTOM corporation
Features
- Digital multimeter with voltage (DC/AC), current (DC/AC), resistance, frequency, capacitance, conduction check and diode check function.
- It has Duty check, data hold, relative comparison, and MAX/MIN functions.
- The true effective value method (TRUE RMS) enables the display of effective values even for non-sinusoidal waveforms.
- In the bar graph display, you can see the changes in the values as if they were analog meters.
- The included thermocouple sensor can also be ***d to measure temperature.
Spec
- Size (mm): 88 x 37 x 186
- Weight ( g ) : about 320 (Including battery)
- power supply : AA size battery x 2 pieces (test attachment)
- measuring range
- DC Voltage: 60, 600 mV, 6, 60, 600, 1000 V
- AC Voltage: 60, 600 mV, 6, 60, 600, 750 V
- DC Current: 600 • 6000 μA, 60 • 600 mA, 6 • 20 A
- AC Current: 600 • 6000 μA, 60 • 600 mA, 6 • 20 A
- Resistance: 600 Ω, 6/60/600 kΩ, 6/60 mΩ
- Electrostatic capacity: 40/400 nF, 4/40/400/4000 μF
- Temperature: 1000 ° C
- Accessories: Test Lead, Alligator Clip, Conversion Socket, K Type Thermocouple
