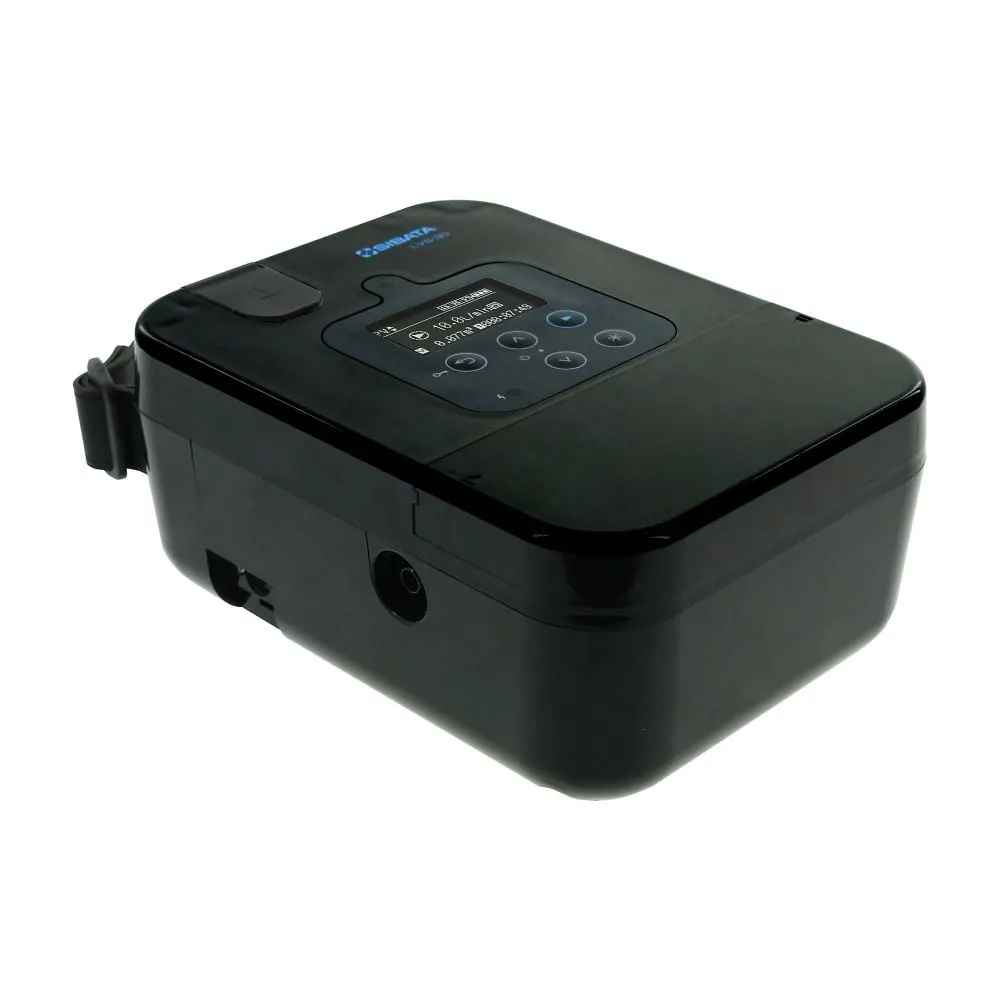

68-5690-13 Low Volume Pump (with CE Mark) 080800-0300
Product Description
Product Model: 68-5690-13Product Brand: SIBATA SCIENTIF […]
Contact Us
Product Details
Product Model: 68-5690-13
Product Brand: SIBATA SCIENTIFIC TECHNOLOGY LTD.
Features
- Compact and lightweight low volume pump.
- Five sampling conditions can be stored.
- Not only can it be powered by AC power, but it can also be powered by a battery unit even when there is no power.
- The lithium-ion battery can be replaced by the customer.
- It can be ***d for various sampling such as the measurement of particulate matter in the work environment and air environment.
Spec
- Flow Rate Variable Range: 5.0~30.0 L/min
- Instantaneous flow display range: 0.0~40.0 L/min
- Flow rate accuracy: within ±5% (Within ±3% of the specified calibration flow rate at the time of automatic calibration of reference flowmeter FC-L1 type)
- Power
- Battery Unit LI-30 (sold separately)
- Lithium Ion Secondary Battery 14.4 VDC 6700mAh 96Wh
- AC Adapter ATS090-P240 (Sold Separately): Input/100~240 VAC 50~60 Hz 1.2 A (MAX), Output/24 VDC 3.75 A (MAX)
- Note:It is necessary to prepare separately the battery unit LI-30 (080800-0310), AC adapter ATS090-P2401 (080800-032) and power cable ATS090-P240 (080800-0321) according to the ***.
