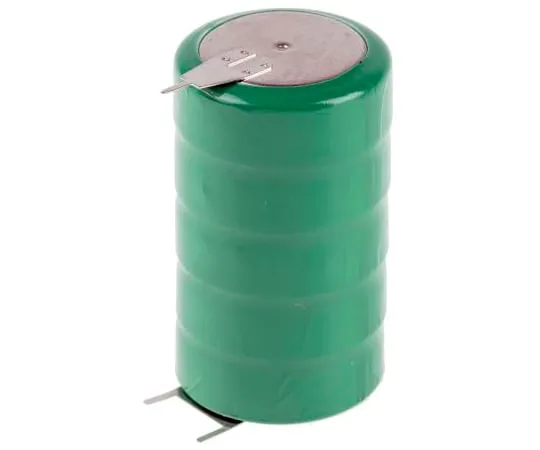

63-6695-09 RS PRO 6V NiMH Button Rechargeable Battery, 330mAh 525-815
Product Description
Product Model: 63-6695-09Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6695-09
Product Brand: RS PRO
Features
- Rechargeable Ni-MH Button Cells
- Rechargeable Ni-MH Button Cells are widely ***d for communication, Siren, Small intelligent ho***hold application, instrument and Various IC Circuit.,CELL AND TYPE, Cell: Sealed Ni-MH Button Cell
- Never short-circuit or reverse polarity in application Avoid throwing cells into a fire or attempting to disassemble them
- This is not safety : *** the cell without the specified working temperature range, charge and discharge with more than our specified current
- Do not mix batteries with metal objects during storage or transportation to avoid accidental short-circuit Button type Normal Charging, Standard charge: 0.1C for 16h Temperature range for operation (Humidity: 65% ±20%, Max.85%) Standard charge 0 → +35 °C Rapid charge +10 → +35 °C Trickle charge 0 → +35 °C Discharge -10 → +35 °C Temperature range for storage (Humidity: 65% ±20%, Max.85%) Within 2 years -20 → +35 °C, Within 6 months -20 → +45 °C, Within a month -20 → +50 °C, Within a week -20 → +55 °C
Spec
- Nominal Voltage:6V
- Capacity:330mAh
- Diameter:25.5mm
- Chemistry:NiMH
- Terminal Type:PCB Pin
- Mounting Orientation:Vertical
- Operating Temperature Range:-20 → +35°C
- CODE No.:525-815
