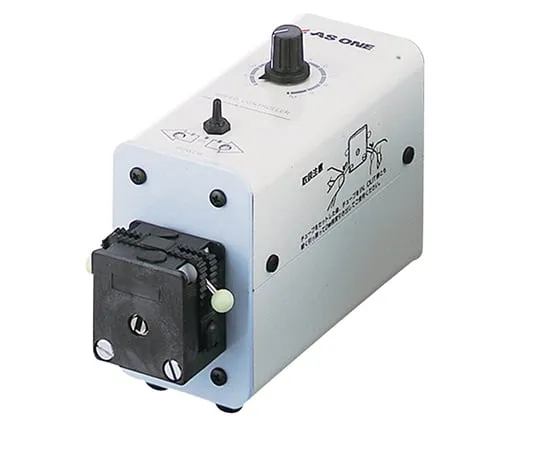

1-9419-01 Cassette Tube Pump Number Of Tube Cases 1 SMP-21AS
Product Description
Product Model: 1-9419-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-9419-01
Product Brand: AS ONE Corporation
Features
- The cassette tube case allows easy tube replacement.
- Flip/reverse is possible by switching the switch.
- The wetted part is only a tube, so there is no metal contact and there is no risk of contamination.
- With strong discharge pressure, it is easy to s*** fluid to a high position or a tank with internal pressure.
Spec
- Model number: SMP-21AS
- Flow rate range: 9 - 160mL/h (inner diameter 1.15 x outer diameter 3.2mm tube), 30 - 507mL/h (inner diameter 2.15 x outer diameter 4.2mm tube), 51 - 900mL/h (inner diameter 3.15 x outer diameter 5.2mm tube)
- Flow rate accuracy: Within ±2% (repeatability within ±1%)
- Discharge pressure: Max.196kPa (2.0kg/cm2)
- Usage solution viscosity, usage solution temperature: Max.2Pa・s (2000cP), -10 - 100℃ (Tygon (R) tube 0 - 70℃) (ice formation unavailable)
- Rotational speed: Continuous variable 2 - 36rpm function/
- Rotation Control: Feedback control
- Rotation setting: Volume setting
- Liquid feed direction: Forward/reverse switching available configuration/
- Motor: Induction motor output 2W
- Tube case: 1 piece (PPS resin) standards/
- Number of tube: 1 volume/1 stage
- Available tube material: Silicone, PharMed (R), Tygon (R), Fluran (R)
- Available tube diameter: Inner diameter 1.15 x Outer diameter 3.2mm, Inner diameter 2.15 x Outer diameter 4.2mm, Inner diameter 3.15 x Outer diameter 5.2mm other/
- Ambient temperature range: -5 - 35℃
- Outer dimension (mm), mass: 73W x 188D x 121 (144) H, 2.5kg
- Power Input, rated power supply: 0.1A, 10VA, AC100V 50/60Hz
- Attached tube: Tygon (R) tube inner diameter 1.15 x outer diameter 3.2mm, Inner diameter 2.15 x Outer diameter 4.2mm, Inner diameter 3.15 x outer diameter 5.2mm 1.5m each *Performance is the value of the room temperature 25℃, rated power voltage, water, liquid temperature 21℃, back pressure 0, Silicone tube. *Performance such as flow rate and discharge pressure may slightly vary dep***ing on the tube to ***. *Discharge quantity can be decreased if the usage solution viscosity exceeds 0.1Pa・s (100cP). *Dimensions in () include protrusions.
