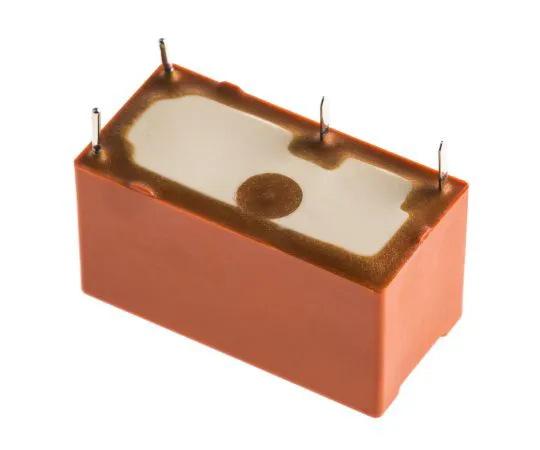

63-6690-63 Relay 24 V dc SPNO 6 A substrate mounting RE034024
model:
63-6690-63
brand:
TE Connectivity
Product Description
Product Model: 63-6690-63Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6690-63
Product Brand: TE Connectivity
Features
- UL, VDE
- RE Series
- High Coil Sensitivity: 200 mW RTIII - Cleaning Resistance Creepage and Clearance: 4 mm Flame Retardant Grade - UL94V-0 Substrate Area: 200 mm 2 Dimensions: 10.6 x 20 x 10 mm
- Use: PLC, Timer, Temperature Control, I/O Card, White Goods, etc.
Spec
- Number of pieces: 1
- Coil voltage: 24 V dc
- Contact configuration: SPNO
- Switching current: 6A
- Terminal type: through hole
- Coil resistance: 2.88 kohm
- Maximum switching voltage AC: 250 V ac
- Application Type: Compact
- Length: 20 mm
- Depth: 10 mm
- Height: 10.6 mm
- Dimensions: 20 x 10 x 10.6 mm
- Operating temperature Min: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 515 -600
