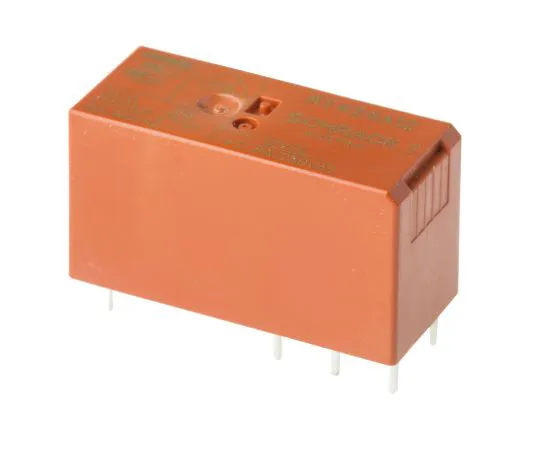

63-6690-62 Latching Relay DPDT 12 V dc RT424A12
model:
63-6690-62
brand:
TE Connectivity
Product Description
Product Model: 63-6690-62Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6690-62
Product Brand: TE Connectivity
Features
- UL, CSA, VDE
- RT1; RT2 Series - Bistable/Latched Relays
- TE Connectivity's RT1/RT2 series relays are bi-stable (latched) relays with polarity and one or two coils. The RT1/RT2 series relays with enhanced insulation and shock resistance are commonly ***d for battery-powered applications or applications where memory functionality is required, such as mains power failures.
- Features and benefits: Enhanced insulation RTII - Flux resistance 5 mm Pinning impact resistance (destructive): 100 g
Spec
- Number of pieces: 1
- Coil voltage: 12 V dc
- Contact configuration: DPDT
- Switching current: 8 A
- Maximum switching voltage AC: 400 V ac
- Series: Schrack
- Length: 29 mm
- Depth: 12.7 mm
- Height: 15.7 mm
- Dimensions: 29 x 15.7 x 12.7 mm
- Terminal type: through hole
- Application Type: Power
- Number of poles: 2
- RoHS compliance status: Compliance
- Securities Code: 515 -583
