Electronic/Electrical Parts and Controll Equipments

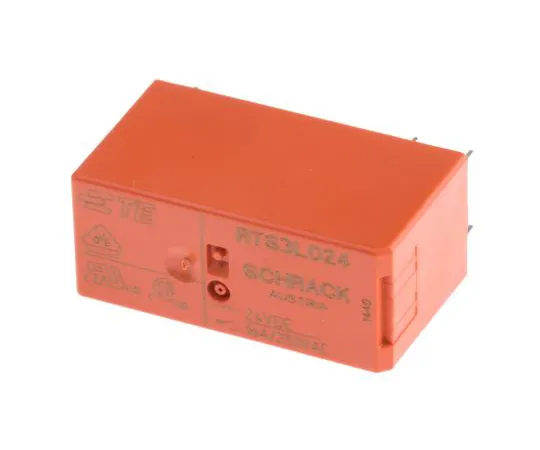

63-6690-54 Relay 24 V dc SPNO 16 A substrate mounting RTS3L024
model:
63-6690-54
brand:
TE Connectivity
Product Description
Product Model: 63-6690-54Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6690-54
Product Brand: TE Connectivity
Features
- UL, CSA, VDE
- RT1 Series - High Entry Relay/Bistable
- 16 A (250 Vac) Opening/Closing Capacity, IEC 60669-1 Enhanced Insulation Creepage and Clearance: 10 mm 5 mm Pinning
- Application: Lighting Systems, Motion Sensors, Incandescent Load, Motor, etc.
Spec
- Number of pieces: 1
- Coil voltage: 24 V dc
- Contact configuration: SPNO
- Mounting Type: Board Mounting
- Terminal type: through hole
- Coil resistance: 1.44 kohm
- Application Type: Power
- Length: 29 mm
- Depth: 12.7 mm
- Height: 16 mm
- Dimensions: 29 x 12.7 x 16 mm
- Operating temperature Min: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 515 -549
