Features

• UL
• Communication-Signal Relay IM Series

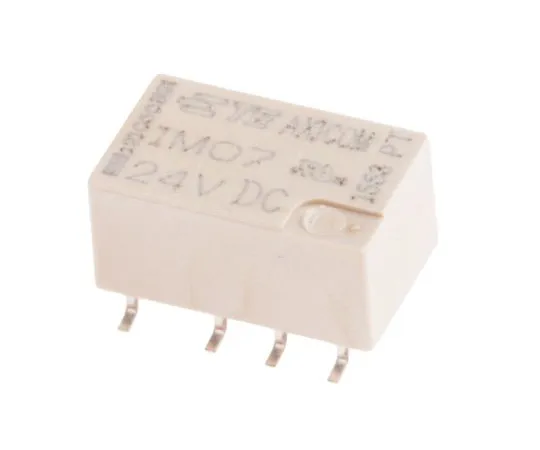

• TE DPDT Telecommunications The SMT relay is a surface-mounted two-pole double-throw relay suitable for communications, optical network terminals, modems, office/office equipment, and home appliances.　Each TE DPDT telecommunications SMT relay is a thin, low-profile 10 x 6 x 5.65 mm relay featuring superior performance and a small substrate footprint.
• Gullwing SMT Leg Branch Contact, Gold Plated Sealed Structure (RT V), IP67 Provides High Mechanical Impact Resistance up to 300 G (Functional) and 500 G (Remaining) Insulation Resistance (@ 500 V dc): > 109 Ω High Surge Current Tolerance - Telcordia TR-NWT-001089 (2/10 μs) and EC60950 (10/700 μs).
