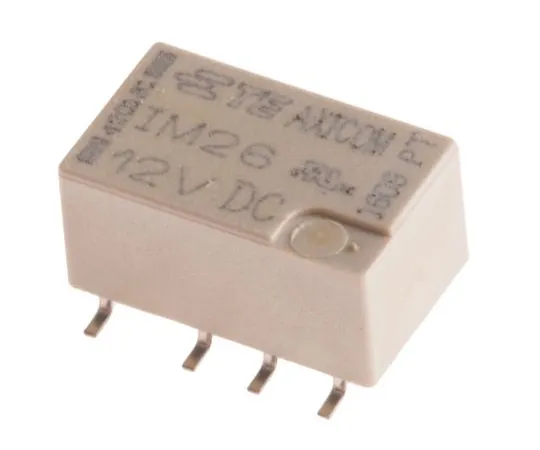

63-6690-49 Relay 12 V dc 2 c Contact 2 A Substrate Mounting IM26GR
model:
63-6690-49
brand:
TE Connectivity
Product Description
Product Model: 63-6690-49Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6690-49
Product Brand: TE Connectivity
Features
- UL
- Communication/Signal Relay IM Series
- Thin and Low Profile -10 x 6 x 5.65 mm Gullwing SMT Leg Branch Contact, Gold Plated Hermetic Shield (RT V), IP67 High Mechanical Impact Resistance up to 300 G (Functional) and 500 G (Remaining) Insulation Resistance (500 Vdc >10 9 Ω) High Surge Support - Telcordia TR-NWT-001089 (2/10 μs) & EC 60950 (10/700 μs)
Spec
- Number of pieces: 1
- Coil voltage: 12 V dc
- Contact configuration: DPDT
- Switching current: 2A
- Terminal Type: Surface Mount
- Coil resistance: 2.88 kohm
- Application Type: Signal
- Length: 10 mm
- Depth: 7.5 mm
- Height: 5.65 mm
- Dimensions: 10 x 7.5 x 5.65 mm
- Operating temperature Min: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 515 -498
