Features

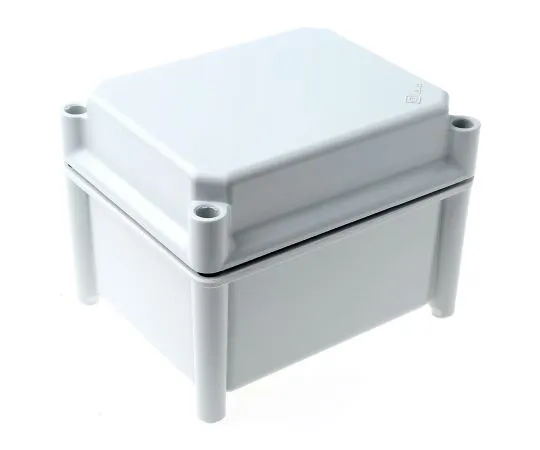

• IP67, IK10 • Reinforced glass fiber front box enclosure • The enclosure/box is made of heat-molded glass fiber reinforced polyester with undiluted dyed gray. The base has an M4 threaded insert (Dodge) to secure the mounting plate or frame. The cover is made of opaque glass fiber reinforced polyester. Enclosures/boxes protect operators and equipment with IP67 (IED60529 and EN60529) compliant insulation and protection. Complies with IK10 protection rating (EN62262 and IEC62262) against external mechanical impact. Designed for harsh environments, this enclosure is corrosion resistant, maintenance free, and RoHS compliant.
• Features and Benefits: 2 parts modular glass fiber enclosureremovable chassis plate included.Has self-extinguishing properties and is resistant to ozone, most oils, acids, solvents, and salts.Operating temperature range: -50 °C → +150 °C
• Additional features
• Intrusion protection (EN60529) IP67
• Shock resistance (EN 62262) IK10
• Operating temperature range (short time): -50 °C → 150 °C (when the cover is installed)
• Operating temperature range (continuous): -40 °C → 70 °C (when the cover is installed)
• Insulation rating Insulation voltage Ui=1000 V
• Color: Light gray (RAL7035)
• PUR gasket
• Glow wire test (IEC695-2-1) Self-extinguishing (PC) 960 °C
• Halogen free
• UV resistance UL508 720 hours (measured with a weatherproof tester)
• Good chemical resistance
