Electronic/Electrical Parts and Controll Equipments

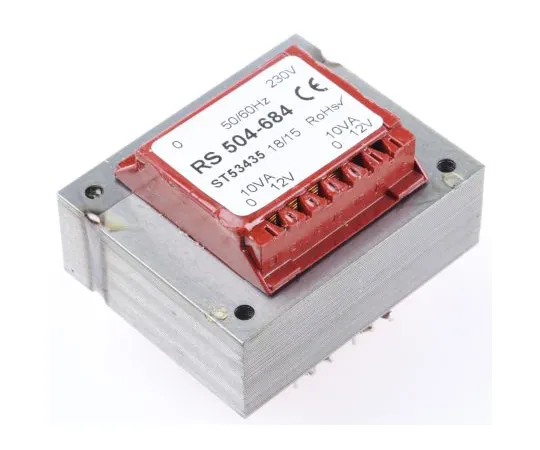

63-6680-69 12V ac 2 Output Through Hole PCB Transformer, 20VA 504-684
Product Description
Product Model: 63-6680-69Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6680-69
Product Brand: RS PRO
Features
- Substrate mounting, flame retardant transformer with thermal f***
- Overload protection and short circuit protection with thermal f*** on the primary side Flame retardant material compliant with UK94-V0 Fully covered spare pins for mounting winding boards Designed and tested in accordance with EN 61558 (EN 60742) EN 60950
Spec
- Secondary Voltage Rating:12V ac
- Power Rating:20VA
- Primary Voltage Rating:230V ac
- Number of Outputs:2
- Length:60mm
- Width:54mm
- Depth:42mm
- Dimensions:60 x 54 x 42mm
- Weight:500g
- Mounting Type:Through Hole
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:504-684
