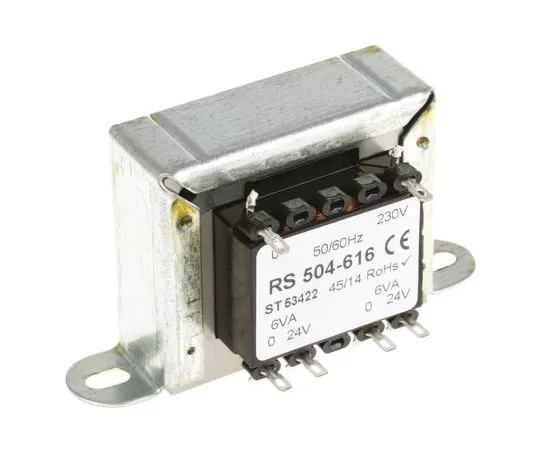

63-6680-59 RS PRO 12VA 2 Output Chassis Mounting Transformer, 24V ac 504-616
Electronic/Electrical Parts and Controll Equipments

63-6680-59 RS PRO 12VA 2 Output Chassis Mounting Transformer, 24V ac 504-616

model: 63-6680-59
brand: RS PRO

Product Description

Product Model: 63-6680-59Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6680-59
Product Brand: RS PRO

Features

  • Chassis mounted, clamp structure, 230 Vac, 6 VA → 50 VA
  • Substrate mounted low voltage main transformer, 1 230 Vac, 50/60 Hz primary winding. Each of the two secondary windings can be connected in series or in parallel to obtain various output voltages and currents.
  • Double Section Bobbin Structure Fully Coated Bobbin Fully Varnished Coating 2-Hole Fixed Wrap Over Clamp Solder Tag Termination Optional Coating at Termination (e.g.; 503-912 503-912) 100% Electrical performance/flash tested BS3535 and EN 60 742 tested and verified

Spec

  • Primary Voltage Rating:230V ac
  • Secondary Voltage Rating:24V ac
  • Power Rating:12VA
  • Number of Outputs:2
  • Mounting Type:Clamp Mount
  • Length:59mm
  • Width:50mm
  • Depth:50mm
  • Dimensions:59 x 50 x 50mm
  • Fixing Hole Diameter:4.7 x 8.7mm
  • Weight:400g
  • Minimum Operating Frequency:50Hz
  • Maximum Operating Frequency:60Hz
  • CODE No.:504-616
