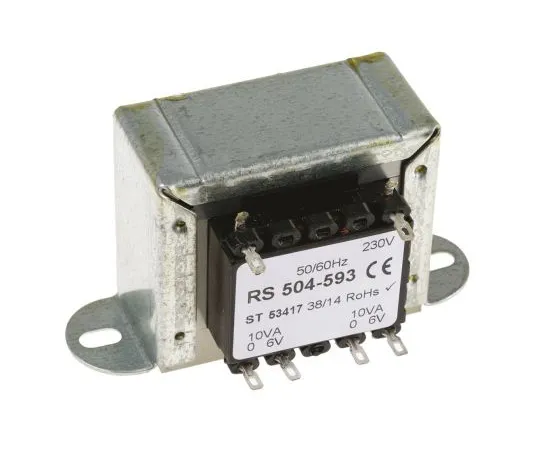

63-6680-54 RS PRO 20VA 2 Output Chassis Mounting Transformer, 6V ac 504-593
Product Description
Product Model: 63-6680-54Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6680-54
Product Brand: RS PRO
Features
- Chassis mounted, clamp structure, 230 Vac, 6 VA → 50 VA
- Substrate mounted low voltage main transformer, 1 230 Vac, 50/60 Hz primary winding. Each of the two secondary windings can be connected in series or in parallel to obtain various output voltages and currents.
- Double Section Bobbin Structure Fully Coated Bobbin Fully Varnished Coating 2-Hole Fixed Wrap Over Clamp Solder Tag Termination Optional Coating at Termination (e.g.; 503-912 503-912) 100% Electrical performance/flash tested BS3535 and EN 60 742 tested and verified
Spec
- Primary Voltage Rating:230V ac
- Secondary Voltage Rating:6V ac
- Power Rating:20VA
- Number of Outputs:2
- Mounting Type:Clamp Mount
- Length:59mm
- Width:57mm
- Depth:50mm
- Dimensions:59 x 57 x 50mm
- Fixing Hole Diameter:4.7 x 8.7mm
- Weight:550g
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:504-593
