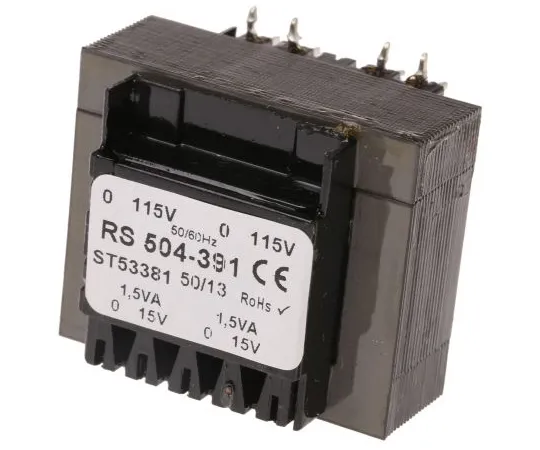

63-6680-29 15V ac 2 Output Through Hole PCB Transformer, 3VA 504-391
Product Description
Product Model: 63-6680-29Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6680-29
Product Brand: RS PRO
Features
- Substrate mounting, 115/230 Vac transformer
- 115 Vac, 2 primary windings of 50/60 Hz usable at 230 V in series connection and 115 V in parallel connection Fully covered bobbin 100% Electrical performance tested/flash tested BS3535 and EN 60 742 tested and verified
Spec
- Secondary Voltage Rating:15V ac
- Power Rating:3VA
- Primary Voltage Rating:115 V ac, 230 V ac
- Number of Outputs:2
- Length:38mm
- Width:35mm
- Depth:30mm
- Dimensions:38 x 35 x 30mm
- Weight:140g
- Mounting Type:Through Hole
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:504-391
