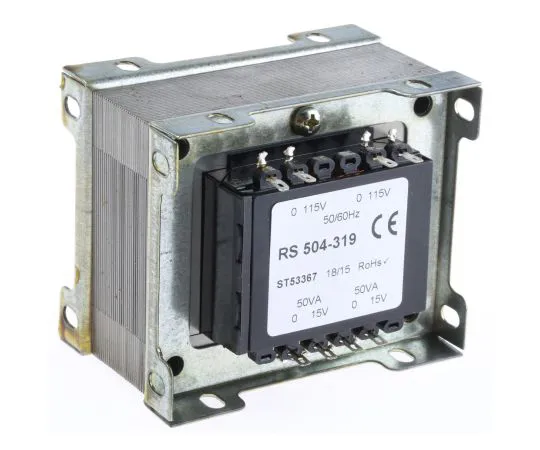

63-6680-26 RS PRO 100VA 2 Output Chassis Mounting Transformer, 15V ac 504-319
Product Description
Product Model: 63-6680-26Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6680-26
Product Brand: RS PRO
Features
- Optimal transformer coating: 6VA =; 503-912 503-912, 12 and 20 VA =; 504-004 504-004, 50, 75 and 100 VA =; 503-928 503-928
- Chassis mounting clamp/frame structure Primary side 115/230 Vac transformer
- Double section bobbin structure
- Fully covered bobbin
- Fully varnished
- 2 hole fixing lap over clamp, 6 VA → 50 VA
- Multi-hole frame fixing 100 VA solder tag End coating with termination option 100% Electrical performance test/flash tested BS3535 and EN 60 742 verified
Spec
- Primary Voltage Rating:115V ac, 230V ac
- Secondary Voltage Rating:15V ac
- Power Rating:100VA
- Number of Outputs:2
- Mounting Type:Chassis
- Length:89mm
- Width:68mm
- Depth:75mm
- Dimensions:89 x 68 x 75mm
- Fixing Hole Diameter:7.9 x 4.8mm
- Weight:1.6kg
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:504-319
