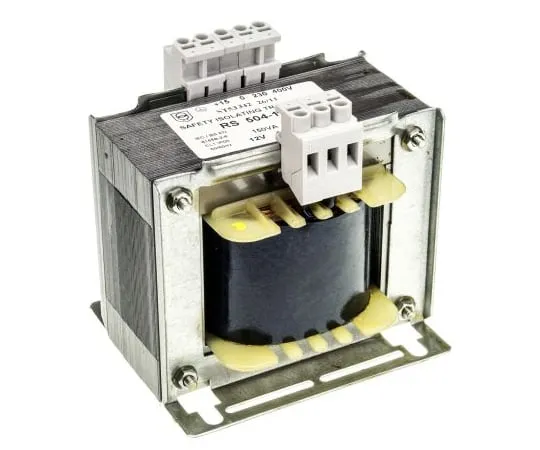

63-6680-16 RS PRO 150VA Isolating Transformer, 230 V ac, 245 V ac, 400 V ac, 415 V ac Primary 1 x, ±12V ac Secondary 504-177
Electronic/Electrical Parts and Controll Equipments

63-6680-16 RS PRO 150VA Isolating Transformer, 230 V ac, 245 V ac, 400 V ac, 415 V ac Primary 1 x, ±12V ac Secondary 504-177

model: 63-6680-16
brand: RS PRO

Product Description

Product Model: 63-6680-16Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6680-16
Product Brand: RS PRO

Features

  • Control Panel Primary 230/ 400Vac with +15Vac Tap
  • High quality safety and isolating transformers designed for *** in control circuits and general applications Low loss noise laminations
  • Dual standard primary winding 230/400Vac with +15V tap for input flexibility
  • Dual secondaries are centre tapped
  • Earth terminal provided
  • Varnish impregnated for overall protection against humidity and rusting Fully shrouded cage clamp terminal with voltage markings Detailed product specification on permanent label
  • High efficiency, low regulation design

Spec

  • Primary Voltage Rating:230 V ac, 245 V ac, 400 V ac, 415 V ac
  • Secondary Voltage Rating:±12V ac
  • Power Rating:150VA
  • Mounting Type:DIN Rail
  • Number of Outputs:1
  • Length:108mm
  • Width:114mm
  • Depth:110mm
  • Dimensions:108 x 114 x 110mm
  • Minimum Operating Frequency:50Hz
  • Maximum Operating Frequency:60Hz
  • Maximum Temperature:+35°C
  • Weight:3.5kg
  • CODE No.:504-177
