Electronic/Electrical Parts and Controll Equipments

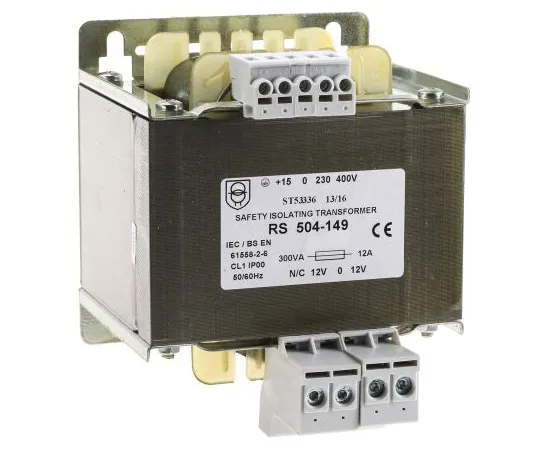

63-6680-09 RS PRO 300VA Isolating Transformer, 230 V ac, 245 V ac, 400 V ac, 415 V ac Primary 1 x, ±12V ac Secondary 504-149
Product Description
Product Model: 63-6680-09Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6680-09
Product Brand: RS PRO
Features
- Control Panel Primary 230/ 400Vac with +15Vac Tap
- High quality safety and isolating transformers designed for *** in control circuits and general applications Low loss noise laminations
- Dual standard primary winding 230/400Vac with +15V tap for input flexibility
- Dual secondaries are centre tapped
- Earth terminal provided
- Varnish impregnated for overall protection against humidity and rusting Fully shrouded cage clamp terminal with voltage markings Detailed product specification on permanent label
- High efficiency, low regulation design
Spec
- Primary Voltage Rating:230 V ac, 245 V ac, 400 V ac, 415 V ac
- Secondary Voltage Rating:±12V ac
- Power Rating:300VA
- Mounting Type:DIN Rail
- Number of Outputs:1
- Length:120mm
- Width:143mm
- Depth:130mm
- Dimensions:120 x 143 x 130mm
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- Maximum Temperature:+35°C
- Weight:6.9kg
- CODE No.:504-149
