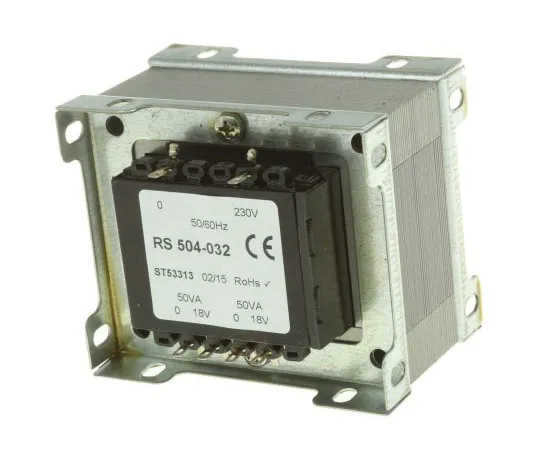

63-6679-87 RS PRO 100VA 2 Output Chassis Mounting Transformer, 18V ac 504-032
Product Description
Product Model: 63-6679-87Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6679-87
Product Brand: RS PRO
Features
- Chassis mounting frame 75 VA → 200 VA
- The two secondary windings can be connected in series or in parallel to obtain various output voltages and currents.
- Optional terminal shrouds for 75 VA and 100 VA (; 503-928 503-928)
Spec
- Primary Voltage Rating:230V ac
- Secondary Voltage Rating:18V ac
- Power Rating:100VA
- Number of Outputs:2
- Mounting Type:Chassis
- Length:89mm
- Width:68mm
- Depth:75mm
- Dimensions:89 x 68 x 75mm
- Fixing Hole Diameter:4.7 x 7.9mm
- Weight:1.6kg
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:504-032
