Electronic/Electrical Parts and Controll Equipments

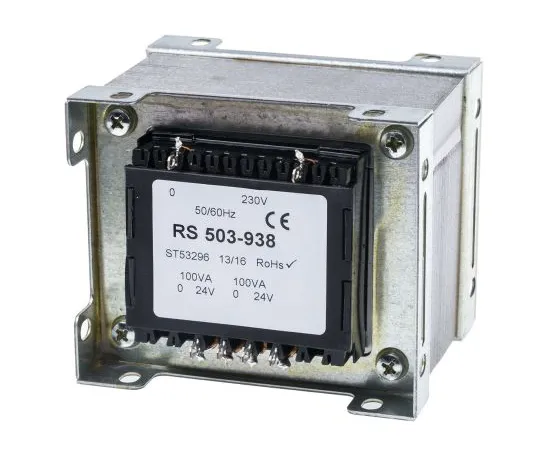

63-6679-78 RS PRO 200VA 2 Output Chassis Mounting Transformer, 24V ac 503-938
Product Description
Product Model: 63-6679-78Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6679-78
Product Brand: RS PRO
Features
- Chassis mounting frame 75 VA → 200 VA
- The two secondary windings can be connected in series or in parallel to obtain various output voltages and currents.
- Optional terminal shrouds for 75 VA and 100 VA (; 503-928 503-928)
Spec
- Primary Voltage Rating:230V ac
- Secondary Voltage Rating:24V ac
- Power Rating:200VA
- Number of Outputs:2
- Mounting Type:Chassis
- Length:100mm
- Width:92mm
- Depth:82mm
- Dimensions:100 x 92 x 82mm
- Fixing Hole Diameter:5.5 x 8.5mm
- Weight:2.8kg
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:503-938
