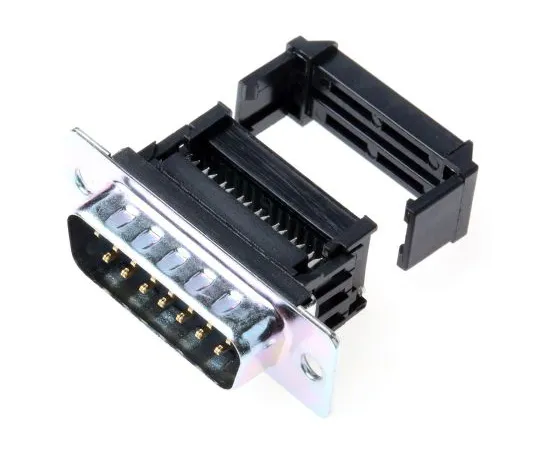

63-6674-68 RS PRO 15 Way Right Angle Cable Mount D-sub Connector Plug, 2.77mm Pitch 492-632
Product Description
Product Model: 63-6674-68Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6674-68
Product Brand: RS PRO
Features
- Strain Relief Clamp
- Commercial 0.05in Pitch, Galvanized
- Metal shell contains UL94-V0 compliant gray polyester insulation and gold-plated contacts on nickel plating.
- Can be attached to a SpeedblocR ribbon cable as a termination connector or daisy chain connector
Spec
- Number of Contacts:15
- G***er:Male
- Body Orientation:Right Angle
- Mounting Type:Cable Mount
- Pitch:2.77mm
- Termination Method:IDC
- Current Rating:3.0A
- Housing Material:Zinc Plated Steel
- Voltage Rating:250.0 V
- Length:39.2mm
- Width:17.58mm
- Depth:12.55mm
- Dimensions:39.2 x 17.58 x 12.55mm
- Contact Plating:Gold over Nickel
- CODE No.:492-632
