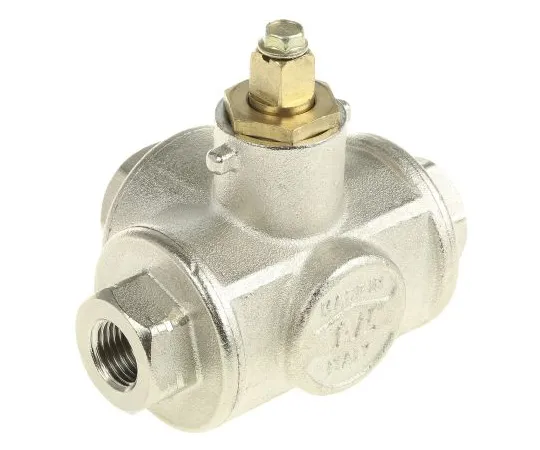

63-6671-36 RS PRO Brass Reduced Bore Ball Valve 1/4 in BSP 3 Way 486-312
Product Description
Product Model: 63-6671-36Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6671-36
Product Brand: RS PRO
Features
- If liquid freezes in the installation parts, the valve may be severely damaged.
- GOST-R (Russia) Expert conclusion (Russia) EAC Compliance (Russia) UkrSepro (Ukraine) RoHS compliant
- Approval applied only to certain configurations
- Brass, 1/4 rotation, L or T ball valve
- S. 100/101 Reduce bore ball valve has an "L" or "T" port configuration. This valve is suitable for oil, air, water, saturated steam or hot water service in domestic, commercial and industrial applications.
- Operating temperature: -10 → +120 ゚C Operating pressure: Non-impact cold operating pressure as indicated on datasheet.Thread: ISO 228 Parallel female thread.Port: Reduce.Connection options: Female stem configuration: Nickel-plated brass stem with blowout protection, 2 NBR O-rings on stem.Ball seat: Genuine PTFE Self-lubricating 100% Italian long-life chrome-plated brass ball.Silicon-free lubricant for all seals.Quality: Best brass according to EN12165 and EN12164 (formerly DIN17660 and UNI5705-65) specifications.
Spec
- Attachment Type:Threaded
- Threaded Connection:1/4 in BSP
- Body Material:Brass
- Thread Size:1/4in
- Safe for Use With:Air, Oil, Steam, Water
- Maximum Working Pressure:30 bar
- Connection Size mm:8mm
- Connection Size inch:1/4in
- Type:3 Way
- CODE No.:486-312
