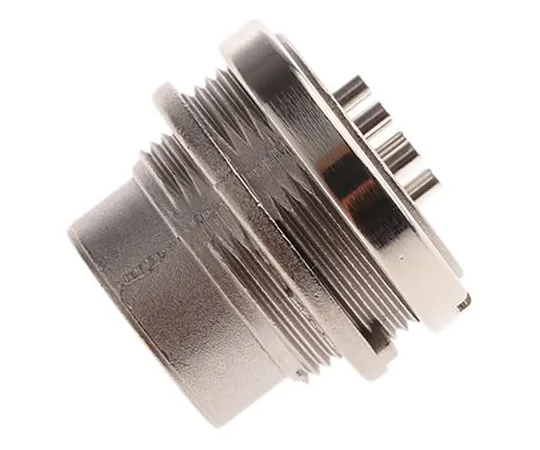

63-6671-22 Din Plug 8-pole panel Mount T3506000
Product Description
Product Model: 63-6671-22Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-6671-22
Product Brand: Amphenol
Features
- Panel mounting connector
- Type 4 and type 5 threaded single piece panel mounting plug and ring nut fixed socket with silver plated contact.
- Tin-plated contacts for cables up to 6.0 mm in diameter, UL94V-2 grade housing with a screw lock mechanism that firmly secures
Spec
- Number of pieces: 1
- Number of contacts: 8
- Male and Female: male
- Mounting Type: Panel Mount
- Bonding type: screw lock
- Terminal Method: Solder
- Body orientation: straight
- Current rating: 4A
- Rated voltage: 100 V
- IP Protection Grade: IP 40
- Shielded/unshielded: shielded
- DIN Number: DIN 45326
- Series: C091A
- Operating temperature Min: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 486 -230
