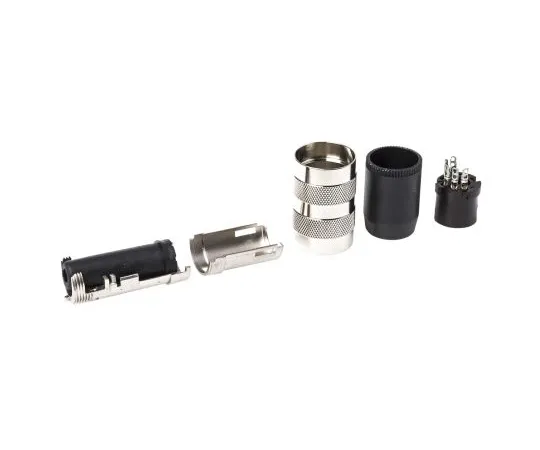

63-6670-99 Din Socket 5-pole cable Mount T3361010
Product Description
Product Model: 63-6670-99Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-6670-99
Product Brand: Amphenol
Features
- Cable mounting connector
- Screw fastening DIN
- Secure screw locking mechanism prevents accidental drop off Corrugated contacts for cables up to 6.0 mm in diameter, UL94V-2 grade housing
Spec
- Number of pieces: 1
- Number of contacts: 5
- Male and Female: Female
- Mounting type: cable Mount
- Bonding type: screw lock
- Terminal Method: Solder
- Body orientation: straight
- Current rating: 4A
- Rated voltage: 100 V
- IP Protection Grade: IP 40
- Shielded/unshielded: shielded
- DIN Number: DIN 41524
- Series: C091A
- Operating temperature Min: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 486 -123
