Features

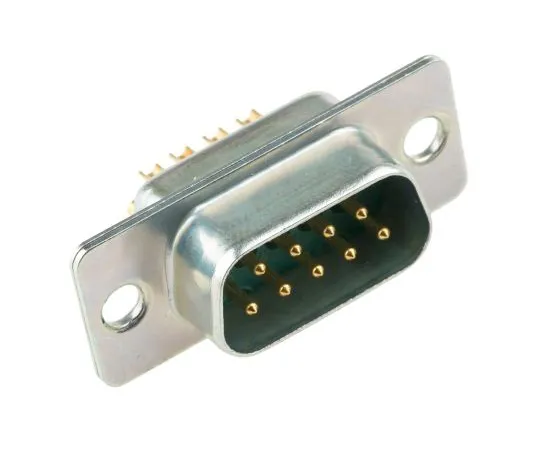

• RS PRO High-Performance D-Sub Connector (with Solder Cup)
• This is a high-performance D-sub miniature connector with excellent RS PRO durability. Designed for *** in environments where high reliability is important. This connector ***s a steel shell and diallyl phthalate insulation. Diallyl phthalate is a type of plastic with good electrical properties, high heat resistance, good dimensional stability, and high strength. This material property improves the electrical performance of the connector. This connector is a commercial version of the M24308 military connector.
• About the D-Sub Connector
• The D-Sub connector is a common type of I/O (input/output) connector often ***d in the computer and data communication industries. Provides power and point-to-point communication between two devices, such as a computer and a monitor. D-sub connectors contain two or more rows of parallel pins or sockets in a D-shaped metal shell. The shell provides mechanical support for the pins or sockets to ensure that they are connected in the correct orientation when engaged. This D-sub can be a female D-sub socket with female contact (D-sub receptacle) or a male D-sub plug with ospin contact. The socket style female connector matches the plug style male connector. Note that the D-Sub of a plastic shell cannot be meshed with the D-Sub of a metal shell.
• Features and Benefits: High reliability and high performanceGalvanized steel shell with yellow chromate finish Gold-plated machined pin contacts for high precision performanceGreen monoblock diallyl phthalate insulator for improved electrical performanceSimple wire termination with flange solder cup for panel threadingApplication: This highly reliable D-Sub connector has a robust design and high reliability. It can be ***d on communication and network ports for a wide range of industrial applications, including industrial, commercial, and medical applications. Main Applications:
• Computers, Monitors, Scanners Networks and Communication Equipment Data Processing Equipment Industrial Equipment and Medical Instruments Remote Sensors and Data Loggers Portable Generator
• Frequently Asked Questions
• How do I terminate wires into connectors?
• This D-Sub has a solder cup with a hollow cup-like cavity. Insert a wire into it and secure it with solder. First, make sure that the connectors are securely fastened during the operation. The *** of each wire is peeled off, and the amount of insulation peeled off is determined according to the depth of the solder cup. Tin the exposed wire strands with a soldering iron and partially fill the solder cups with solder. Place a soldering iron on the edge of the cup so that the solder melts. Insert the *** of the tin-plated wire into the cup and hold it there until the solder hardens. If the wire gauge is thick enough to fit into the cup, insert the wire into the cup and melt the solder into the cup while applying the soldering iron to the back of the cup.
• How do I install this connector? This D-sub is designed for panel installation. Drill holes in the panel. The dimensions of the hole are determined by the dimensions of the plug or socket panel cutout. The two mounting flanges on either side of the connector have mounting holes. Drill holes in the panel to match these mounting holes. Then insert the connector into the panel cutout and screw it into the holes in both the connector and the panel.
