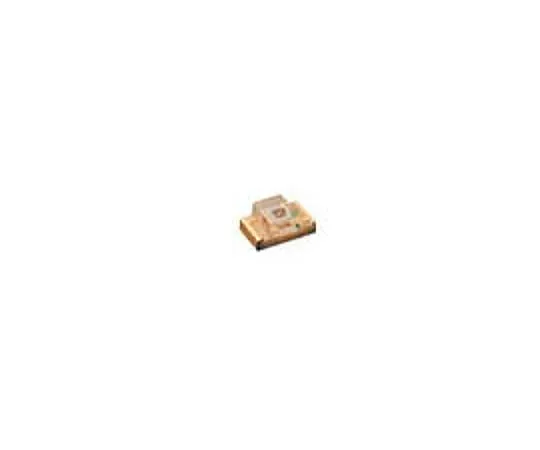

63-3120-75 Ultra-High Luminance Chip LED Green PG1112H
model:
63-3120-75
brand:
STANLEY ELECTRIC
Product Description
Product Model: 63-3120-75Product Brand: STANLEY ELECTRI […]
Contact Us
Product Details
Product Model: 63-3120-75
Product Brand: STANLEY ELECTRIC
Spec
- Package: 2125 (t = 0.8 mm) Type, Milky White Resin
- Colour of light emitted: green
- Forward Voltage VF/Standard: 2.1 V
- Forward Voltage VF/Maximum: 2.8 V
- Forward voltage VF/condition IF: 20 mA
- Reverse voltage VR: 4 V
- Forward current IF: 25 mA
- Reverse current IR/Maximum: 100 μA
- Reverse current IR/condition VR: 4 V
- Allowable loss mW/Po: 70 mW
- Resin Color: Milky White
- dominant wavelength (typ): 567 nm
- Directed half-value angle θx: 159 °
- Directed half-value angle θy: 156 °
- Operating temperature: -40 °C + 85 °C
- Storage temperature: -40 °C + 100 °C
- Luminance: 3.8 mcd 6.4 mcd
- Photometry/condition IF: 20 mA
