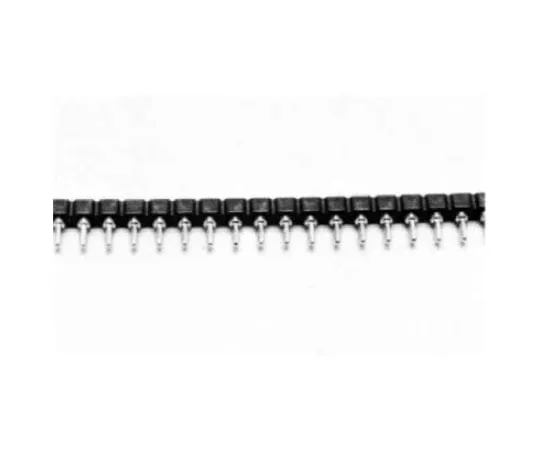

63-3120-23 Ultra-low Socket Pin 2.54 mm pitch ME/MF series (10 pcs) MF-3-1-20P
Electronic/Electrical Parts and Controll Equipments

63-3120-23 Ultra-low Socket Pin 2.54 mm pitch ME/MF series (10 pcs) MF-3-1-20P

model: 63-3120-23
brand: MAC EIGHT CO., LTD

Product Description

Product Model: 63-3120-23Product Brand: MAC EIGHT CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3120-23
Product Brand: MAC EIGHT CO., LTD

Features

  • MF type is a 2.54 mm (0.1inch) pitch ultra-low back round pin socket (Base height: 2.5 mm, 20 pins). A dedicated connector that connects boards directly to each other without using cables. The pin diameter is φ0.45 mm and the corresponding pin header is MX series. The MX series has various kinds of height, and the board height can be selected on the pin header side. It does not match with the jumper post shared type square pin header (about 0.6 mm square) even if the pitch is the same. Round pin IC socket (pin diameter φ0.45 mm or so) and pin diameter are almost the same. (The manufacturer does not guarantee compatibility.)
  • Connector type: Straight
  • Number of rows: 1
  • Number of pins: 20
  • Socket height: 3.9 mm
  • Pitch: 2.54 mm
  • Rated voltage :-
  • Rated current: 1 A
  • Operating temperature range: -40°C to +125°C
  • Number of units: 10
  • Use in combination with MX series for double stacking. ・There are 3 types: 1.27 mm, 1.778 mm, and 2.54 mm pitch.
