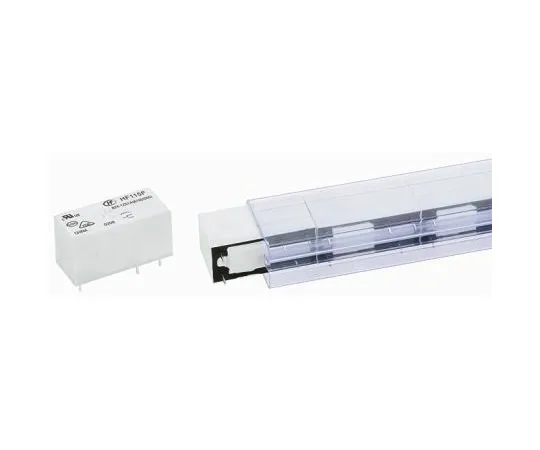

63-6665-83 RS PRO, 6V dc Coil Non-Latching Relay SPDT, 16A Switching Current PCB Mount Single Pole 476-797
Product Description
Product Model: 63-6665-83Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6665-83
Product Brand: RS PRO
Features
- IEC60335-1
- UL (File No. E134517), VDE (File No. 116934), CQC (File No. CQC 02001001951)
- Low Profile Relay
- Low Profile, Maximum Height: 15.7 mm 5 mm pinning for 8 A and 16 A types, 3.5 mm pinning for 12 A type Insulation Capacity: 5 kV (Coil to Contact) Maximum Surge Voltage: 10 kV (Coil to Contact) Resistant Creepage: 10 mm VDE 0435/0631/0700
Spec
- Coil Voltage:6V dc
- Coil Power:400mW
- Coil Resistance:90 Ω
- Isolation Coil To Contact:5kV ac
- Contact Configuration:SPDT
- Mounting Type:PCB Mount
- Switching Current:16A
- Terminal Type:Through Hole
- Number of Poles:1
- Maximum Switching Voltage AC:440V ac
- Maximum Switching Voltage DC:300V dc
- Height:15.7mm
- CODE No.:476-797
