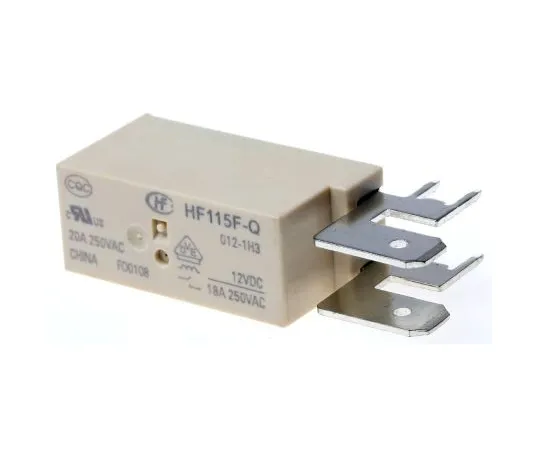

63-6665-80 RS PRO, 12V dc Coil Non-Latching Relay SPNO, 20A Switching Current PCB Mount Single Pole 476-779
Product Description
Product Model: 63-6665-80Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6665-80
Product Brand: RS PRO
Features
- IEC60335-1
- UL (File No. E134517), VDE (File No. 116934)
- High Current (20 A) Relay
- High Rated Current: Up to 20 A Ambient Temperature: Up to 125 °C Low Profile, Maximum Height: 15.7 mm 6.3 mm Quick Connect Male with Terminal Insulation Capacity: 5 kV (Coil to Contact) Maximum Surge Voltage: 10 kV (Coil to Contact) Flame Resistance Grade: UL94 V-0 Flux Resistant Structure Class F Insulation Creep Distance: 8 mm or more Complies with VDE0435/0631/0700
Spec
- Coil Voltage:12V dc
- Coil Power:400mW
- Coil Resistance:360 Ω
- Isolation Coil To Contact:5kV ac
- Contact Configuration:SPNO
- Mounting Type:PCB Mount
- Switching Current:20A
- Terminal Type:Through Hole
- Number of Poles:1
- Maximum Switching Voltage AC:440V ac
- Maximum Switching Voltage DC:300V dc
- Height:15.7mm
- CODE No.:476-779
