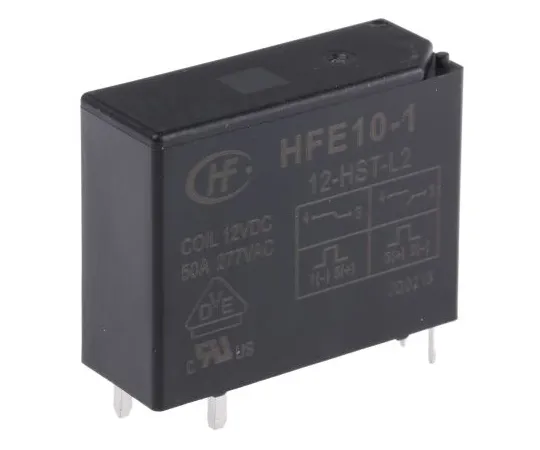

63-6665-64 RS PRO SPNO 12V dc Latching Relay, 50 A PCB Mount 476-577
Product Description
Product Model: 63-6665-64Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6665-64
Product Brand: RS PRO
Features
- UL (file number E134517), CQC (file number CQC 06017016719)
- Since the set coil and the reset coil have a common positive connection, do not excite both coils simultaneously. Do not continue to excite either coil for more than one minute.
- High-power latch relay
- Switching current performance: Up to 50 A Lamp load: Up to 5000 W Capacitor load: Up to 200 μF (minimum inrush current (500 A/10 μs)) Insulation breakdown voltage: 4 kV (between coil and contact) Anti-wash creepage distance: 8 mm
Spec
- Coil Voltage:12V dc
- Contact Configuration:SPNO
- Switching Current:50 A
- Maximum Switching Voltage AC:440V ac
- Length:39mm
- Depth:15mm
- Height:30.2mm
- Dimensions:39 x 30.2 x 15mm
- Terminal Type:Through Hole
- Application:Power
- Contact Material:Silver Alloy
- CODE No.:476-577
