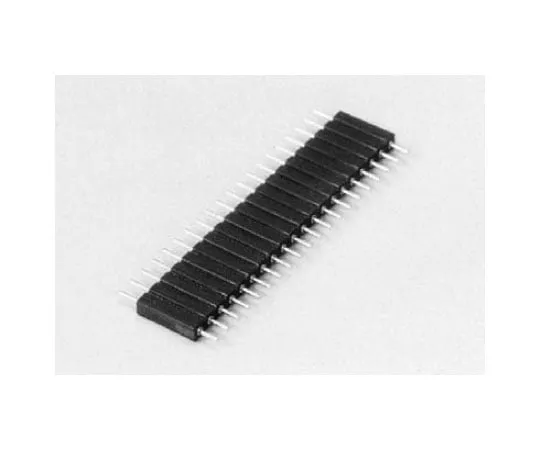

63-3120-16 Removable 2-layer heavy-duty OW Series height 3 mm (10 pieces) OW-3-3-20P
Electronic/Electrical Parts and Controll Equipments

63-3120-16 Removable 2-layer heavy-duty OW Series height 3 mm (10 pieces) OW-3-3-20P

model: 63-3120-16
brand: MAC EIGHT CO., LTD

Product Description

Product Model: 63-3120-16Product Brand: MAC EIGHT CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3120-16
Product Brand: MAC EIGHT CO., LTD

Features

  • Round pin header (Base height: 3 mm, 20 pins) with 2.54 mm (0.1inch) pitch. A dedicated connector that connects boards directly to each other without using cables. The diameter of the pin is φ0.7 mm and the corresponding socket on the other side is PM-61 type. It is not compatible with jumper post shared type square pin header (about 0.6 mm square) and round pin IC socket (pin diameter around φ0.45 mm) even though the pitch is the same. (Reseat type is a name that distinguishes it from a fixed type pin header for double stacking with both ***s soldered to the board.)
  • Connector Type: Straight
  • Number of Columns: 1 Row
  • Number of Pins: 20 Pins
  • Pitch: 2.54 mm
  • Rated Voltage :-
  • Rated Current: 4 A
  • Terminal Processing: Gold Plating (Nickel Underlay)
  • Operating Temperature Range: -40°C - +125°C
  • Number of Pins: 10
  • Printed circuit boards can be inserted and removed in two stacked layers. (Opposite Socket ・・・ PM-61)
