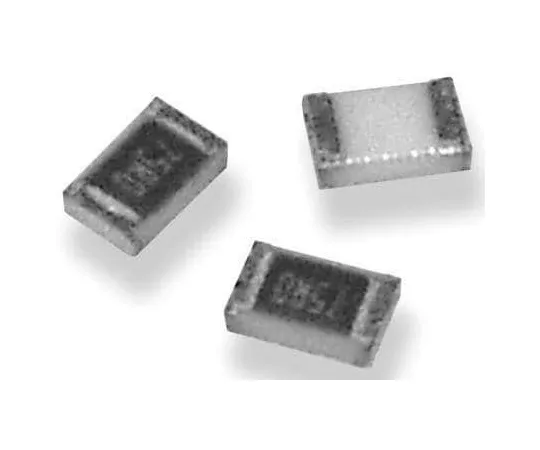

63-6663-59 Thin-film Chip Resistor 1608 size 0.063 W 15.4 kohm +/- 0.1% RN73C1J15K4B
model:
63-6663-59
brand:
TE Connectivity
Product Description
Product Model: 63-6663-59Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6663-59
Product Brand: TE Connectivity
Features
- High Precision Thin Film Resistors RN73 Series
- The RN73 Series is a highly stable product of precision chip resistors. Stable high-frequency performance for various power losses per chip size
Spec
- Quantity: 1 bag (5 pieces)
- Resistance: 15.4 kohms
- Package/Case: 0603
- Tolerance: +/- 0.1%
- Rated power: 0.063 W
- Temperature factor: +/- 10 ppm/deg.
- Technology: Thin film
- Dimensions: 1.55 x 0.8 x 0.45 mm
- Length: 1.55 mm
- Depth: 0.8 mm
- Height: 0.45 mm
- Series: RN 73
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 125 degrees C
- Maximum operating voltage: 50 V
- RoHS compliance status: Compliance
- Securities Code: 473 -168
