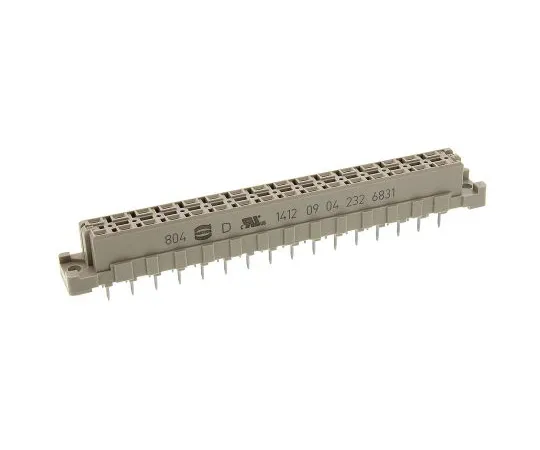

63-6663-54 DIN 41612 Connector Female 32 Pole 2 Row 5.08 mm pitch 09042326831
Product Description
Product Model: 63-6663-54Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-6663-54
Product Brand: HARTING
Features
- Harting DIN41612 Type D Backplane Power Connector
- The Harting DIN41612 Type D backplane power connector is designed for a variety of high-power applications, including power and rail transportation. The Harting power connector according to DIN41612 is for board to board connection, has excellent cyclic life, abrasion resistance and high durability. Female Connector Housing (Part No.; For scalpel crimping contacts for 740-6922 740-6922), the representative part number; Refer to 741-2924 741-2924 Operating Temperature Range: -55 → +125 °C Maximum 6 A Contact Resistance per Contact: 15 mΩ (Maximum) Thermoplastic-Glass Fiber Copper Alloy Contact
Spec
- Quantity: 1 piece
- Number of contacts: 32
- Male and female: female
- Number of lines: 2
- Body orientation: Straight
- Terminal Method: Solder
- Loading column: a/c
- Type: D
- pitch: 5.08 mm
- Mounting type: through hole
- Class Rating: C2
- Rated current: 6A
- RoHS compliance status: Compliance
- Securities Code: 473 -149
