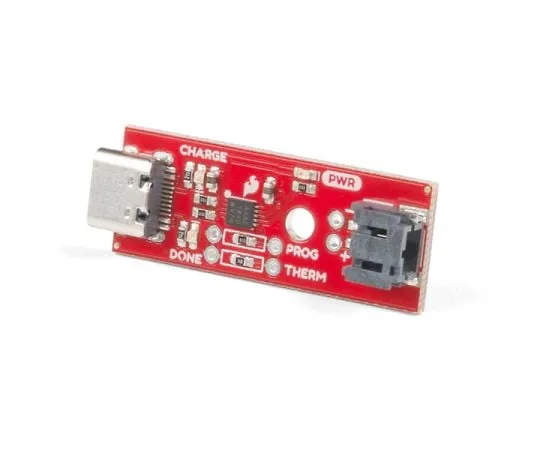

64-5660-15 LiPo Charger Plus PRT-15217
Product Description
Product Model: 64-5660-15Product Brand: SparkFun Spec U […]
Contact Us
Product Details
Product Model: 64-5660-15
Product Brand: SparkFun
Spec
- USB Type-C rechargeable lithium polymer (LiPo) battery charger
- This LiPo charger is equipped with a Microchip MCP73833 battery charging controller IC and ***s a USB Type-C connector for the input charging connector. When the input voltage is between 3.75 V and 6 V, it can be charged up to a maximum rate of 1000mAh, and 2 types of thermal protection are available. The internal sensor maintains the maximum charge rate until the IC die temperature reaches 95°C, while the charging controller reduces the charge rate to prevent overheating. The MCP73833 also has an optional input pin for the negative temperature coefficient (NTC) thermistor to protect the battery from damage. This board can be ***d with a single cell LiPo battery with a 2-pin JST connector.
- Get Started with the SparkFun LiPo Charger Plus Guide
- Specifications
- Supply voltage: 3.75 V~6 V
- Guaranteed constant temperature/constant voltage operation
- Programmable charging current: 1 A maximum
- Accurate preset voltage adjustment: 4.2 V+0.75%
- Current ratio can be selected
- Voltage threshold can be set
- With Cell Temperature Monitor
- Low Dropout Linear Regulator Mode
- current sense function
- reverse discharge protection function
- LED for charge indication/power supply indication/*** indication
- [Reference]
- Schematic
- Eagle Files
- Hookup Guide
- Datasheet (MCP73833)
- GitHub Hardware Repo
