Spec

• Voltage conversion module capable of converting 5 V to 3.3 V or 3.3 V to 5 V

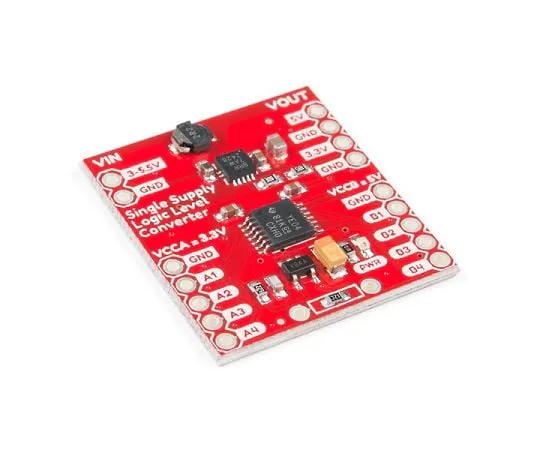

• This is a logic level and power supply voltage conversion module board equipped with TI's 4-bit bidirectional voltage level translator TXB0104. A sensor operating at 3.3 V and a microcomputer board operating at 5 V can be ***d with 1 power supply. The TXB0104 can be programmed to supply 5 V to the high side and 3.3 V, 2.5 V or 1.8 V to the low side. The default low-side voltage is 3.3 V.
• Get Started with the SparkFun Single Supply Logic Level Converter Guide
• Specifications/Size: 28.5 mm x 26 mm
• [Reference]
• Schematic
• Eagle Files
• Hookup Guide
• Datasheets
• ・TXB0104
• ・TPS61200
• GitHub
