Spec

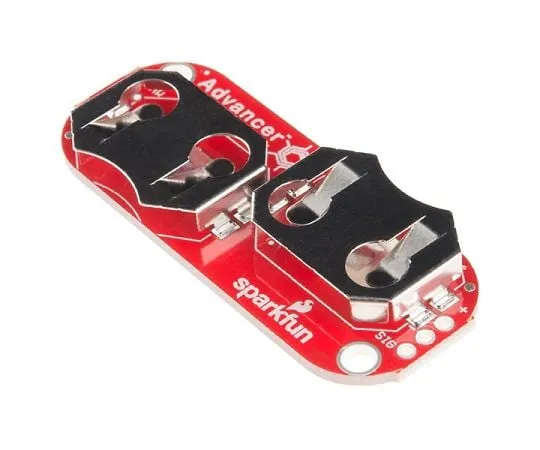

• Battery Expansion Board for MyoWare Muscle Sensor
• A shield that ***s 2 CR2032 coin cells to power the MyoWare muscle sensor. Using the MyoWare muscle sensor with a battery shield cleans the signal and eliminates the possibility of creating dangerous current paths to the power grid.
• [Note]
• *The MyoWare Power Shield and the MyoWare LED Shield can both provide power, but the voltage applied is slightly different. Therefore, do not *** both of these shields at the same time.
• Get Started with the MyoWare Power Shield
• [Reference]
• Schematic
• Eagle Files
• MyoWare Sensor & Shields Guide
• GitHub
