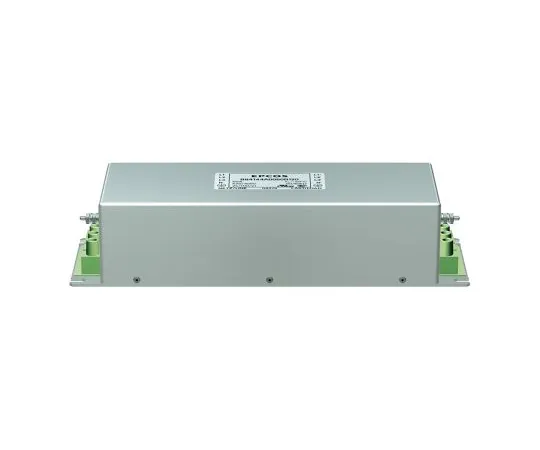

63-6658-21 EMC Filter (Power Line Filter) 3-Phase 25 A Flange Mount 9.4 mA 1 Row 3.9 mΩ UL 1283 B84144A0025R120
Product Description
Product Model: 63-6658-21Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6658-21
Product Brand: EPCOS
Features
- EN 133200, UL 1283, CSA C22.2 No.8
- UL and cUL p***ing
- B84144A*R120 Series
- Easy to install 4 line filter in metal case, sealed with polyurethane (UL94 V-0) Optimized for long motor cable and operation at full load
- Applications: frequency converters for motor drives (Elevators, pumps, conveyor systems, HVAC systems, etc.), power supplies, industrial applications
Spec
- Quantity: 1 Piece
- Maximum rated current: 25 A
- Maximum rated voltage: 520 V ac
- Mounting Type: Flange Mount
- *** styles: screws
- Phase: 3
- Series: B84144A*R120
- Operating frequency: 50 → 60 Hz
- Length: 80 mm
- Depth: 238 mm
- Height: 60 mm
- Dimensions: 80 x 238 x 60 mm
- Leak current: 9.4 mA
- Operating temperature Max: +100°C
- Resistance: 3.9 mΩ
- Standard Compliance: UL 1283
- RoHS compliance status: Compliance
- Securities Code: 467-876
