Electronic/Electrical Parts and Controll Equipments

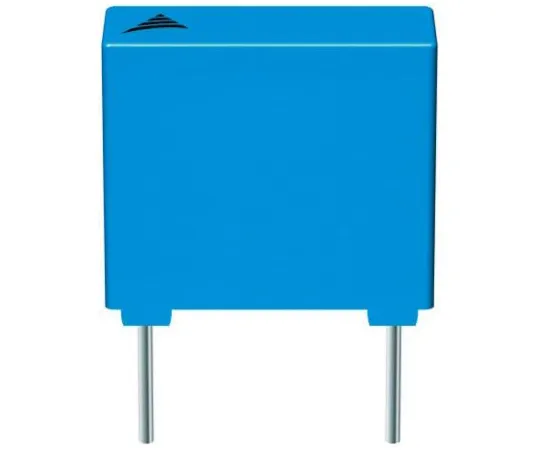

63-6657-45 Polypropylene Film Condenser 300 V ac3.3nF±20% 1 Bag (10 Pieces) B32021A3332M000
Product Description
Product Model: 63-6657-45Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6657-45
Product Brand: EPCOS
Features
- EN132400/IEC60384-14 (300 V AC) UL1414 (250 V AC) UL1283 (400 V AC) CSA C22.2 No.1 (250 V AC) CSA C22.2 No.8 (400 V AC)
- Designed for direct connection to power distribution systems, it should not be ***d in locations where capacitor failure could ca*** electric shock.
- B3202* Series
- Polypropylene structure of plastic case (UL94 V-0) and epoxy resin seal (UL94 V-0) Ultra-compact, excellent self-recovery, high voltage resistance General applications include Y2 class for interference suppression and line grounding, etc. Operating temperature: -40 → +110 °C
Spec
- Quantity: 1 Bag (10 Pieces)
- Capacitance: 3.3 nF
- Voltage: 300 V ac
- Mounting Type: Through Hole
- Tolerance: ±20%
- Series: B32021
- Lead Pitch: 10 mm
- Length: 13 mm
- Depth: 4 mm
- Height: 9 mm
- Dimensions: 13 x 4 x 9 mm
- Temperature Characteristic: PP
- Lead Diameter: 0.6 mm
- RoHS compliance status: Compliance
- Securities Code: 466-526
