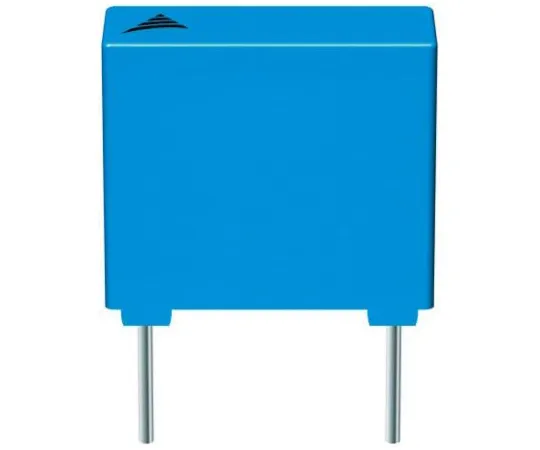

63-6657-40 Polypropylene Film Condenser 300 V ac330nF±20% 1 Bag (10 Pieces) B32024A3334M000
Product Description
Product Model: 63-6657-40Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6657-40
Product Brand: EPCOS
Features
- EN132400/IEC60384-14 (300 V AC) UL1414 (250 V AC) UL1283 (400 V AC) CSA C22.2 No.1 (250 V AC) CSA C22.2 No.8 (400 V AC)
- Designed for direct connection to power distribution systems, it should not be ***d in locations where capacitor failure could ca*** electric shock.
- B3202* Series
- Polypropylene structure of plastic case (UL94 V-0) and epoxy resin seal (UL94 V-0) Ultra-compact, excellent self-recovery, high voltage resistance General applications include Y2 class for interference suppression and line grounding, etc. Operating temperature: -40 → +110 °C
Spec
- Quantity: 1 Bag (10 Pieces)
- Capacitance: 330 nF
- Voltage: 300 V ac
- Mounting Type: Through Hole
- Tolerance: ±20%
- Series: B32024
- Lead Pitch: 27.5 mm
- Length: 31.5 mm
- Depth: 13.5 mm
- Height: 23 mm
- Dimensions: 31.5 x 13.5 x 23 mm
- Temperature Characteristic: PP
- Operating temperature Min: -40°C
- RoHS compliance status: Compliance
- Securities Code: 466-481
